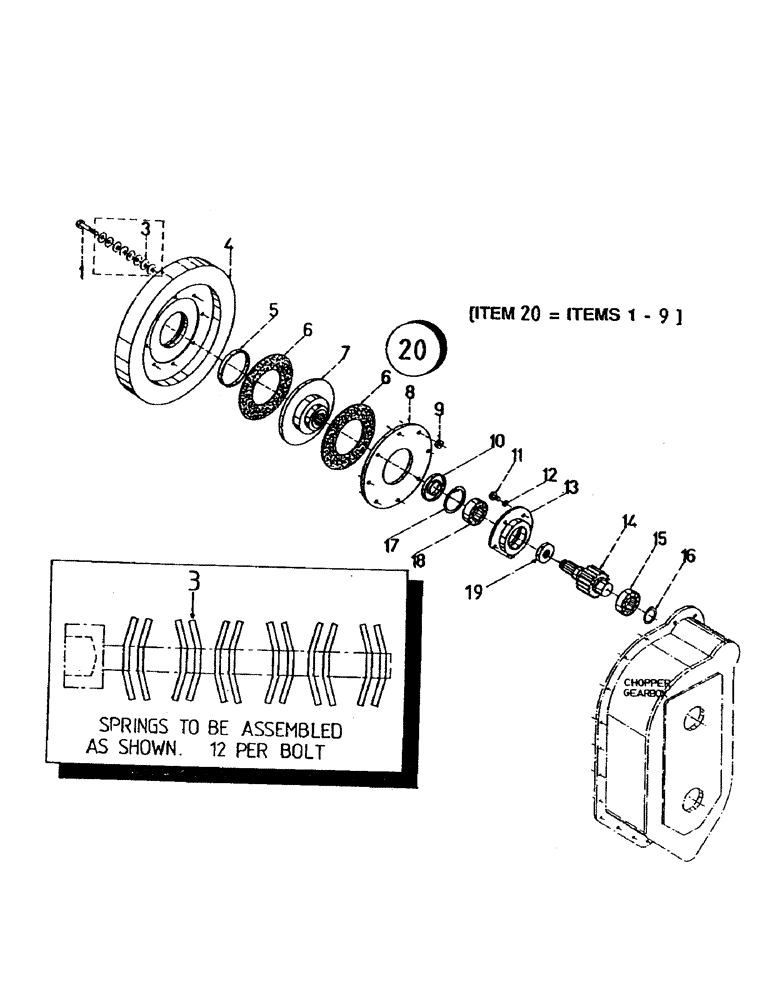

Запчасти Case IH 7700 (A02-21) - MAINFRAME, FLYWHEEL ROTARY CHOPPER & GEARBOX (Jul 16 2004 11:34PM) Mainframe & Functioning Components

1

FC112065

SCREW,M12 x 1.75 x 65mm

BOLT

8шт.

3

00130076

WASHER

SPRING

96шт.

4

87220478

FLYWHEEL

1шт.

5

87220477

BRONZE BUSHING,116.15mm ID x 126.15mm OD x 12mm L

BUSH

1шт.

6

87220475

SHIM,125mm ID x 220mm OD x 5.15mm Thk

2шт.

7

87220479

ADAPTER

ADAPTOR

1шт.

8

87220476

CLUTCH, PRESSURE PLA

PLATE

1шт.

9

NA112000

NUT

8шт.

10

00100717

OIL SEAL

SEAL

1шт.

11

FA112025

BOLT

6шт.

12

WB120000

WASHER

6шт.

13

87217721

BEARING HOUSING,90 mm ID x 110.06 mm OD x 60 mm

HOUSING

1шт.

14

87217726

GEAR

PINION

1шт.

15

00144101

BEARING

1шт.

16

CEO55000

CIRCLIP

1шт.

17

CI100000

CIRCLIP

1шт.

18

00140425

BEARING

1шт.

19

00141225

NUT

1шт.

20

87220481

FLYWHEEL

#1 TO 9 INCLUSIVE

1шт.
