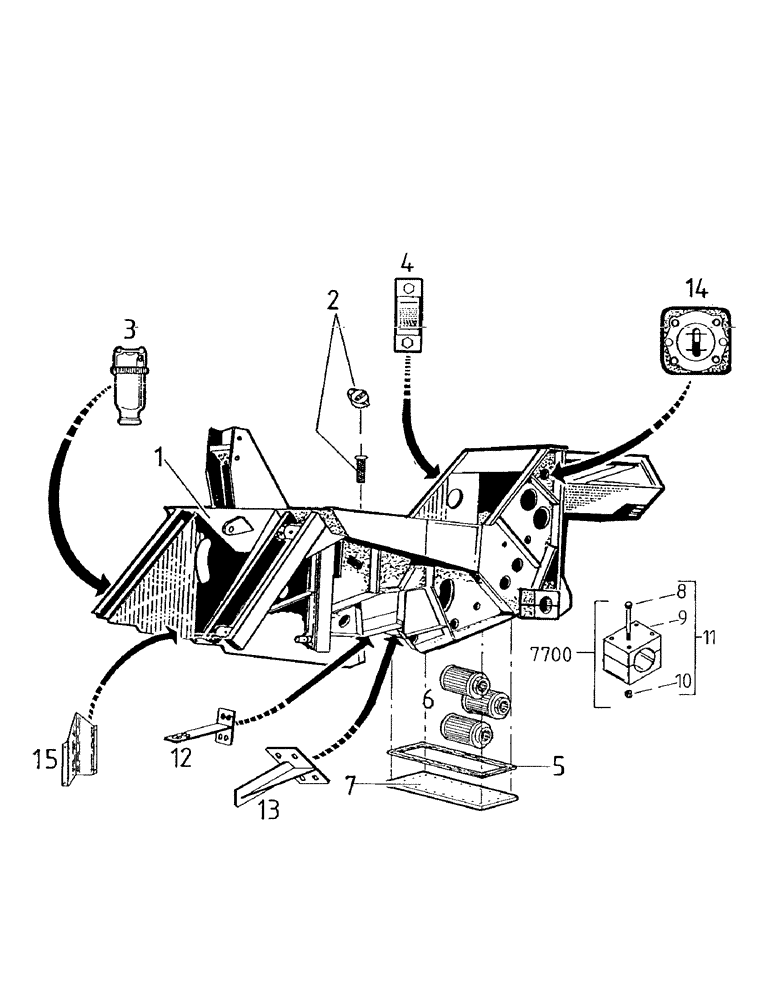

Запчасти Case IH 7700 (G01-01) - LEG BASE CUTTER, CHASSIS, 7000/7700 Leg Base Cutter

1

87224177

MAINFRAME (Rotary Chop 7700)

1шт.

1

87224178

MAINFRAME (Rotary Chop 7000)

1шт.

2

00404346

FILLER CAP

CAP

2шт.

2

FA105020

BOLT,Hex, M5 x 0.8, Gr 8.8

6шт.

3

00137032

FUEL FILTER

WATER TRAP

1шт.

4

00101646

LEVEL GAUGE CONTROL

GAUGE (Oil)

1шт.

5

86731800

GASKET,6mm Thk

(Oil Tank)

1шт.

6

00400057

HYDRAULIC OIL FILTER

FILTERS

3шт.

7

86729700

COVER ASSY

COVER PLATE

1шт.

8

00608141

BOLT

8шт.

9

87219216

BLOCK ASSY.

CLAMP BLOCK (Pair)

2шт.

10

00606004

LOCK NUT

NUT

8шт.

11

87219217

CLAMP

BLOCK ASSEMBLY Including # 8, 9 and 10

1шт.

12

87224105

MOUNTING PARTS

STRUT

1шт.

12

FM116045

BOLT

8шт.

12

NA116000

NUT

8шт.

12

WB160000

SPRING WASHER

WASHER

8шт.

13

87224245

SCRAPER

(LH)

1шт.

13

87224246

SCRAPER

(RH)

1шт.

13

FN112025

SET SCREW

8шт.

13

WB120000

WASHER

8шт.

14

00136076

LEVEL GAUGE CONTROL

GAUGE (Murphy)

1шт.

REPAIR KIT PART NUMBER 87235818 CONSISTS OF 00180786 FLOAT, 00180787 GASKET AND 00180788 CONTACT ASSY

1шт.

87235818

REPAIR KIT

FLOAT SWITCH

1шт.

00180786

FLOAT

1шт.

00180787

GASKET

1шт.

00180788

CONTACT

ASSY

1шт.

15

87224039

GUIDE

(LH)

1шт.

15

87224040

GUIDE

(RH)

1шт.

15

FA110020

BOLT

8шт.

15

NA110000

NUT

8шт.

15

WB100000

WASHER

8шт.
