/ / / / / / / / (C05-01) - ENGINE MOUNTS, 108

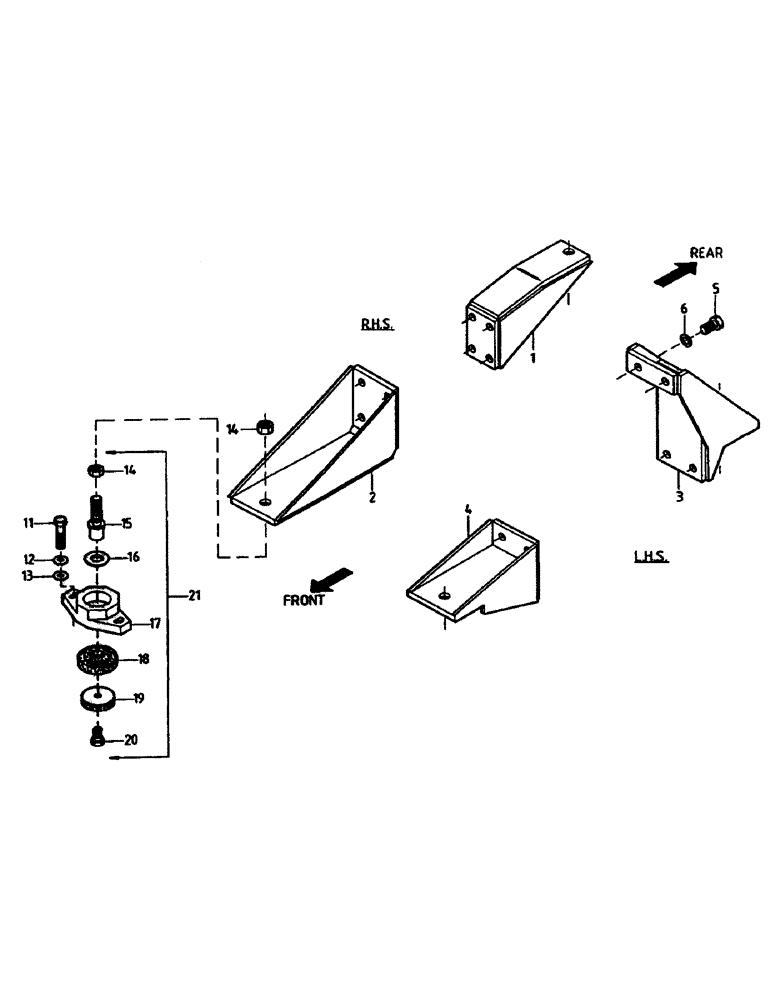

Запчасти Case IH 7700 (C05-01) - ENGINE MOUNTS, 108 Engine & Engine Attachments
13
19
14
15
20
1
6
14
17
12
11
5
4
2
3
16
21
18
1
87232174
ENGINE MOUNT
MOUNT [RH REAR]
1шт.
2
86951900
MOUNTING PARTS
MOUNT [RH FRONT]
1шт.
3
87242664
ENGINE MOUNT
MOUNT [LH REAR]
1шт.
4
86951000
MOUNTING PARTS
MOUNT [LH FRONT]
1шт.
5
FM112030
BOLT
16шт.
6
WB120000
WASHER
16шт.
11
00608166
BOLT
8шт.
12
00605829
WASHER
8шт.
13
00605810
WASHER
8шт.
14
00606250
NUT
8шт.
15
87217397
PIN,19.05mm OD x 95mm L
4шт.
16
87217400
WASHER
4шт.
17
87217410
HOUSING
4шт.
18
87217403
DISC
4шт.
19
87217402
WASHER
4шт.
20
00606755
BOLT
4шт.
21
87217404
MOUNTING PARTS
MOUNT ASSEMBLY
4шт.
