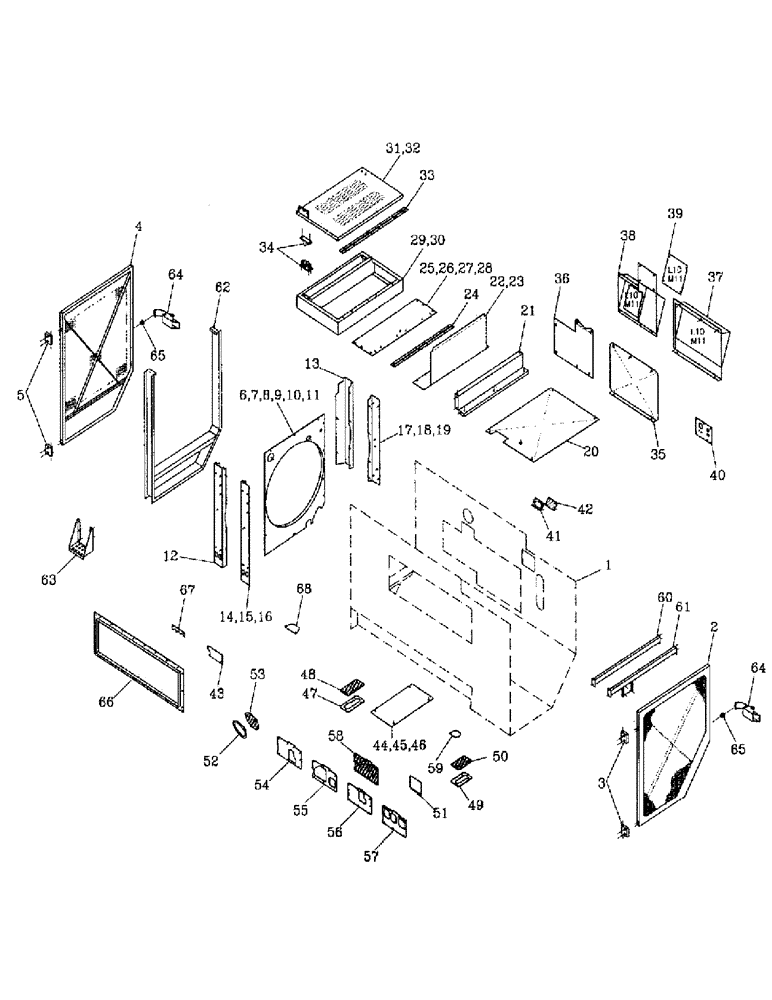

Запчасти Case IH 7700 (C03-01) - ENGINE COMPARTMENT Engine & Engine Attachments
№
Артикул
Название
Примечание
Количество
1
87249735
SHELL
ENGINE COMPARTMENT [108/6CT/L10/M11]
1шт.
1
87249736
ENGINE COMPARTMENT [125]
1шт.
1
87249737
ENGINE COMPARTMENT [3306]
1шт.
2
87246485
DOOR ASSY.
DOOR
1шт.
2
00180492
SEAL
PINCHWELD, With Rubber
1шт.
3
87229919
LUG
HINGE
2шт.
4
87247298
DOOR
[108/6CT]
1шт.
4
87246589
DOOR ASSY.
DOOR [125/L10/M11/3306]
1шт.
4
00180492
SEAL
PINCHWELD, With Rubber
1шт.
5
86983900
HINGE
2шт.
6
87247323
SHROUD [108]
1шт.
7
87247283
SHROUD
[125]
1шт.
8
87232472
SHROUD
[6CT]
1шт.
9
87247292
SHROUD ASSY.
SHROUD [L10/M11-330]
1шт.
10
87249600
SHROUD [M11-250]
1шт.
11
87247317
SHROUD
[3306]
1шт.
12
87247319
SUPPORT [FRONT] [108/6CT]
1шт.
13
87235422
SUPPORT [REAR] [108/6CT]
1шт.
14
87246609
SHROUD ASSY.
SUPPORT [FRONT] [125]
1шт.
15
87247294
SUPPORT
[FRONT] [L10/M11]
1шт.
16
87247315
SUPPORT [FRONT] [3306]
1шт.
17
87242916
BRACKET
SUPPORT [REAR] [125]
1шт.
18
87232824
GUARD
SUPPORT [REAR] [L10/M11]
1шт.
19
87244126
SUPPORT [REAR] [3306]
1шт.
20
87234332
PLATE
COVER
1шт.
21
87242289
BRACKET
MEMBER
1шт.
22
87242186
COVER
[108/6CT]
1шт.
23
87242090
PLATE
COVER [125/L10/M11/3306]
1шт.
24
87242089
HINGE
1шт.
25
87242185
PLATE [108/6CT]
1шт.
26
87245624
PLATE
[125]
1шт.
27
87245623
PLATE
[L10/M11]
1шт.
28
87245725
PLATE [3306]
1шт.
29
87238026
MOUNTING PARTS
COVER [125/M11-250]
1шт.
30
87233183
COVER ASSY
COVER [L10/M11-330/3306]
1шт.
31
86958000
COVER
[108/6CT/L10/M11-330/3306]
1шт.
32
87238040
COVER ASSY
COVER [125/M11-250]
1шт.
33
86958200
HINGE
1шт.
34
00607939
SPRING
CATCH
2шт.
35
87231867
COVER ASSY
COVER [REAR] [108/125/6CT/3306]
1шт.
36
87231850
COVER ASSY
COVER [REAR] [108/125/6CT/3306]
1шт.
37
87231847
COVER ASSY
COVER [REAR] [L10/M11]
1шт.
38
87236098
MOUNTING PARTS
COVER [REAR] [L10/M11]
1шт.
39
87236113
PLATE
COVER [REAR] [L10/M11]
1шт.
40
87237782
PLATE
[108/6CT]
1шт.
40
87237787
PLATE
[125/L10/M11/3306]
1шт.
41
87213656
COVER PLATE
1шт.
42
87219224
PLATE
RUBBER
1шт.
43
87251648
COVER
1шт.
44
87230221
COVER ASSY
COVER [LOWER] [108/6CT/L10/M11]
1шт.
45
87238192
COVER ASSY
COVER [LOWER] [125]
1шт.
46
87242552
COVER [LOWER] [3306]
1шт.
47
87247279
RETAINER [RH]
1шт.
48
87247281
SEAL [RH]
1шт.
49
87247280
RETAINER [LH]
1шт.
50
87247986
SEAL [LH]
1шт.
51
87246617
COVER
1шт.
52
87247976
COVER
1шт.
53
87247978
SEAL
1шт.
54
87248878
COVER, Commercial [108/125/6CT/3306]
1шт.
55
87252048
COVER
Denison [108/125/6CT/3306]
1шт.
56
87248875
COVER, Commercial [L10]
1шт.
57
87248881
COVER, Denison [L10]
1шт.
58
87248877
RUBBER
SEAL
1шт.
59
87246619
PLATE
COVER
1шт.
U/S
1шт.
60
87232171
STIFFENER
[108/125/6CT/L10/3306]
1шт.
61
87249841
SUPPORT
[M11]
1шт.
62
87246519
EXTENSION
[125/M11-250]
1шт.
63
87247201
STEP
1шт.
64
00181902
LATCH
2шт.
65
00181881
BUTTON
2шт.
66
87251487
FRAME
1шт.
67
87243296
PLATE
1шт.
68
87243284
SUPPORT
1шт.
Выбрано товаров: 75
