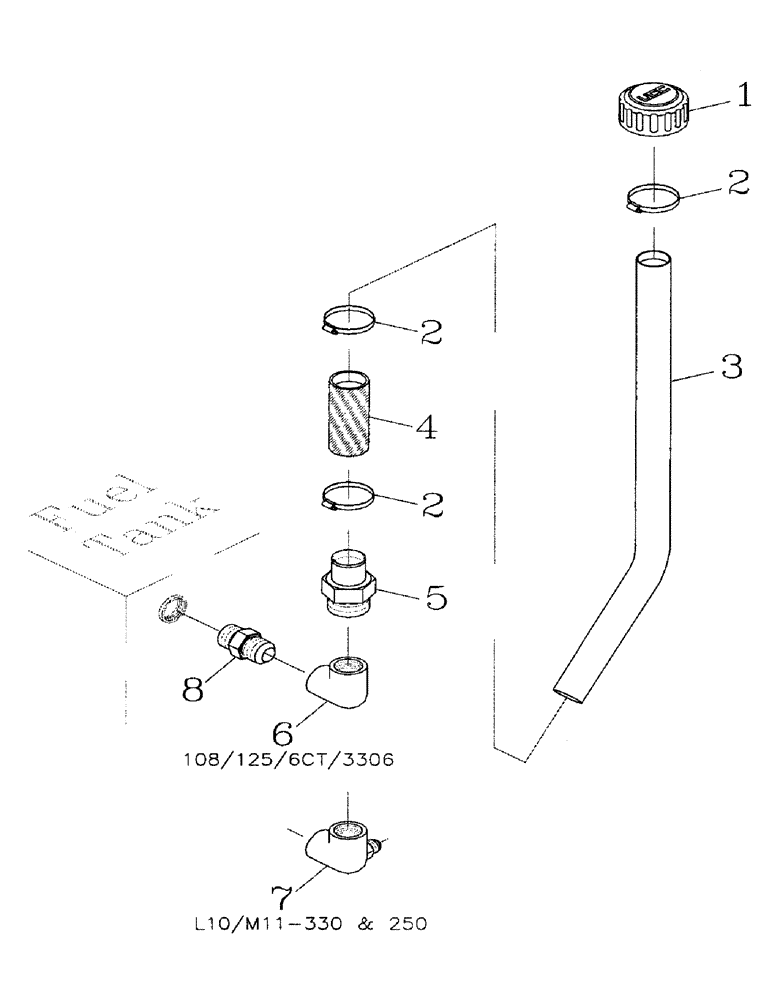

Запчасти Case IH 7700 (C01-13) - FUEL TANK BREATHER Engine & Engine Attachments

1

00401607

FILLER CAP

CAP

1шт.

2

00152128

HOSE CLAMP

CLAMP

3шт.

3

87243286

TUBE,38.10 mm OD

1шт.

4

86312272

HOSE,38.10 mm ID x 110.00 mm

38.10 mm ID x 110.00 mm

1шт.

5

00408560

FITTING

HOSETAIL

1шт.

6

00152075

ELBOW

[108/125/6CT/3306]

1шт.

7

87247927

ELBOW

[L10/M11]

1шт.

8

00400122

ASSEMBLY

NIPPLE

1шт.
