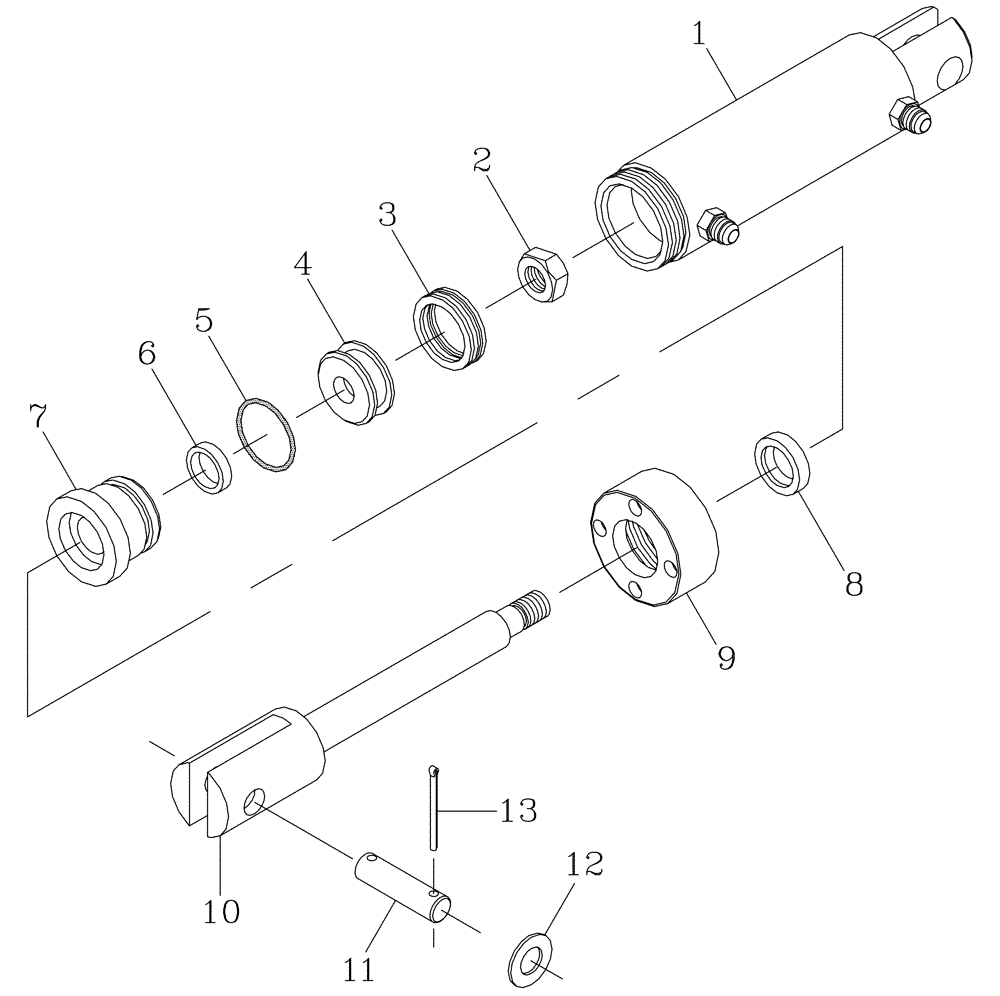

Запчасти Case IH 7700 (B02[08]) - HYDRAULIC CYLINDER {Extractor Bin Flap} Hydraulic Components & Circuits

1

87231204

CYLINDER,44.45mm Bore Dia

BARREL

1шт.

2

00605804

NUT

1шт.

3

00100728

OIL SEAL

1шт.

4

87231206

PISTON

1шт.

5

00100027

O-RING

1шт.

6

00100759

OIL SEAL

1шт.

7

87214818

CYLINDER HEAD

1шт.

8

00100552

OIL SEAL

1шт.

9

87213507

NUT

NUT

1шт.

10

87231205

SHAFT

1шт.

11

82087400

PIN,15.88mm OD x 68mm L

2шт.

12

WA160000

WASHER

4шт.

13

SA050050

COTTER PIN

4шт.

14

87214817

SEAL KIT

1шт.

15

87231203

CYLINDER,Double Acting, 22.2mm Rod, 100mm Stroke

ASSEMBLY

1шт.
