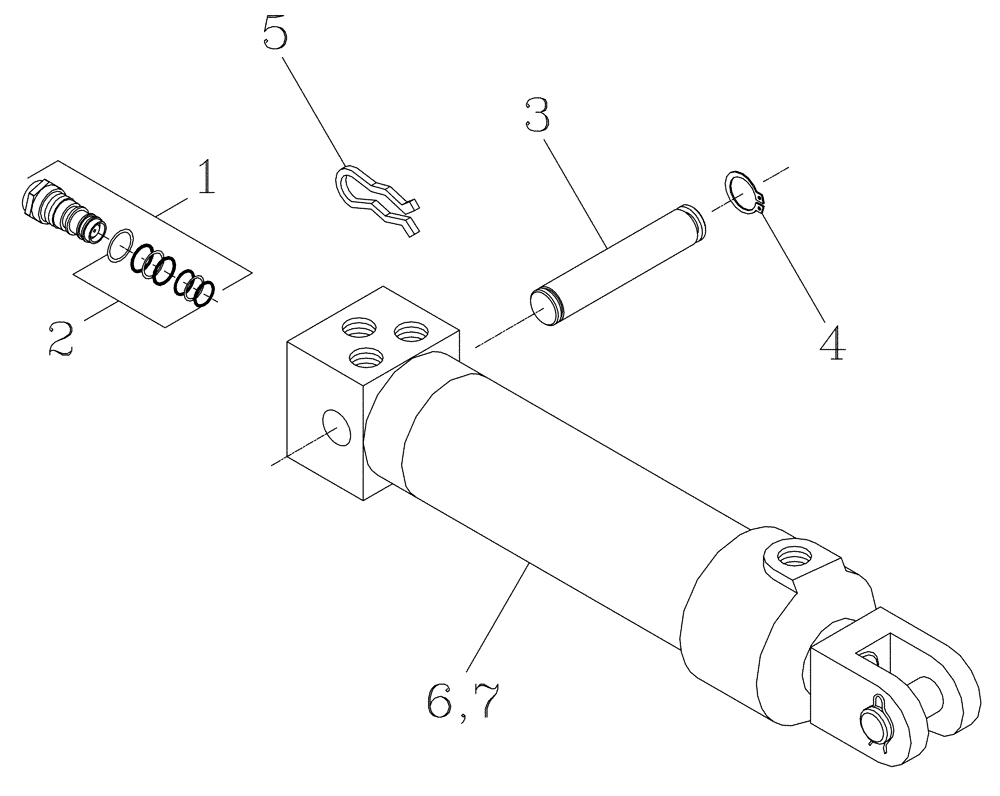

Запчасти Case IH 7700 (B02[05]) - HYDRAULIC CYLINDER {Cabin Tilt} Hydraulic Components & Circuits

1

395125A1

VALVE

pilot check

2шт.

2

00410463

ASSEMBLY

KIT seal

2шт.

3

379352A1

PIN,25.4mm OD x 137mm L

1шт.

4

CE022000

CIRCLIP

1шт.

5

86990525

RETAINER

Retainer

1шт.

6

395124A1

SEAL KIT

cylinder

1шт.

7

377072A1

CYLINDER,Double Acting, 34.92mm Rod, 300mm Stroke

ASSEMBLY

1шт.
