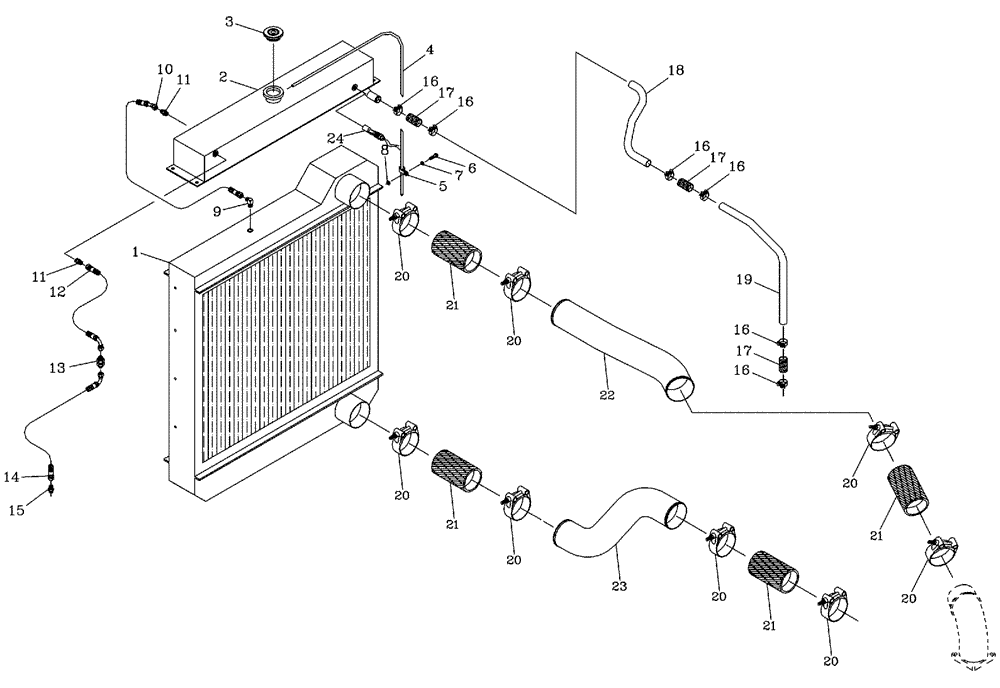

Запчасти Case IH 7700 (C02[07]) - INTERCOOLER {QSM11} Engine & Engine Attachments

1

432881A1

RADIATOR

1шт.

87463563

GASKET

TANK TO CORE

2шт.

2

432882A1

TANK

Reserve

1шт.

3

00180923

RADIATOR CAP

1шт.

4

86308718

TUBE

1шт.

5

00134540

CLAMP

CLIP

1шт.

6

FA108025

BOLT

8шт.

7

WB080000

WASHER

8шт.

8

WA080000

WASHER

8шт.

9

00400188

HYD CONNECTOR

Elbow

1шт.

10

86988431

HOSE

1шт.

11

00400162

HYD CONNECTOR

Nipple

2шт.

12

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

1шт.

13

00400070

HYD CONNECTOR

Nipple

1шт.

14

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

1шт.

15

00400160

HYD CONNECTOR

Nipple

1шт.

16

00152127

HOSE CLAMP

6шт.

17

86311778

HOSE,3.75"

3шт.

18

432875A1

HOSE ASSY.

TUBE [Top Shunt]

1шт.

19

432877A1

HOSE ASSY.

TUBE [Bottom Shunt]

1шт.

20

402111A1

SPECIAL CLAMP

CLAMP

8шт.

21

87242626

HOSE,101.60 mm ID x 115.00 mm

4шт.

22

430680A1

TUBE

TUBE [Top]

1шт.

23

430681A1

TUBE

TUBE [Bottom]

1шт.

24

402114A1

SENDER UNIT

SENDER Water Level

1шт.
