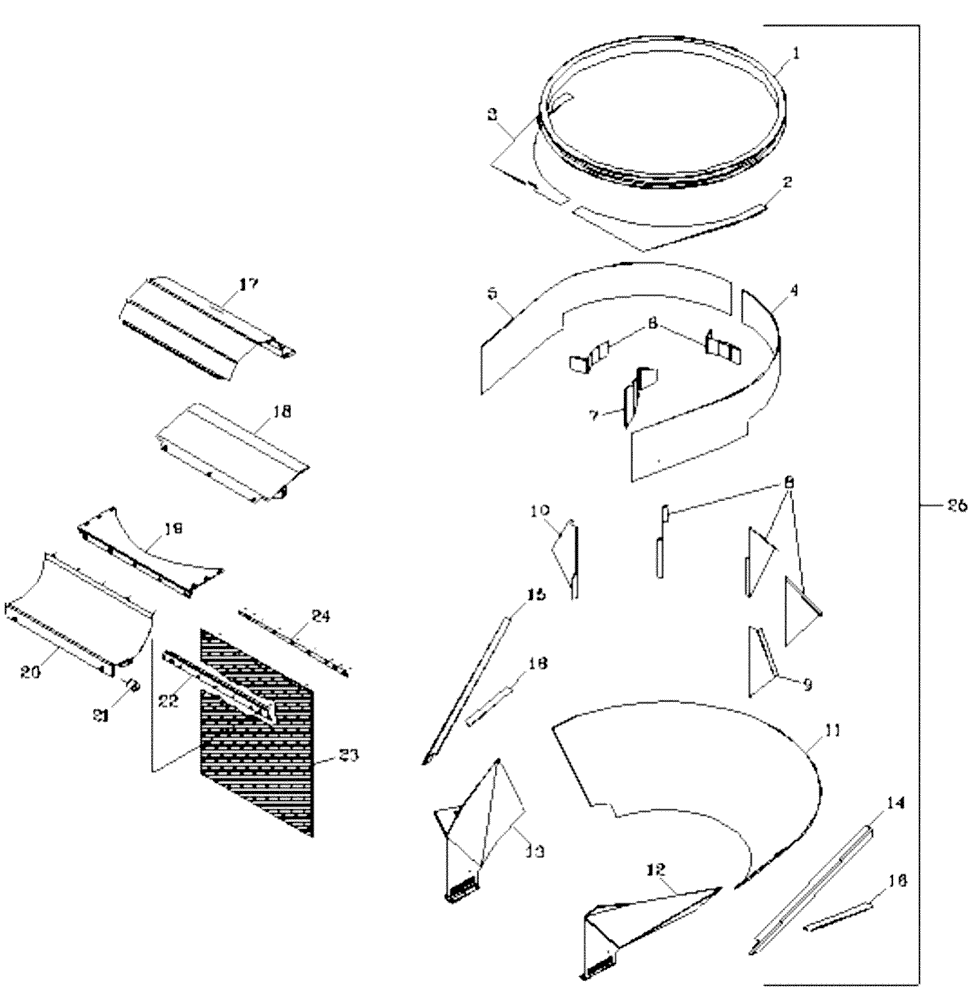

Запчасти Case IH 7700 (A07[01]) - PRIMARY EXTRACTOR Mainframe & Functioning Components

1

87255169

RING

1шт.

2

87243399

PLATE ASSY.

Top [LHS]

1шт.

3

440902A1

PLATE

Top [RHS]

1шт.

4

87250585

PLATE ASSY.

BODY [LHS]

1шт.

5

87250586

PLATE ASSY.

BODY [RHS]

1шт.

6

87241050

PLATE

DEFLECTOR

1шт.

7

87214032

PLATE

DEFLECTOR

1шт.

8

87246196

GUSSET

REAR

3шт.

9

87246194

GUSSET

LHS

1шт.

10

87246193

GUSSET

RHS

1шт.

11

87246195

CONE

1шт.

12

87243412

PLATE

LHS

1шт.

13

87244061

PLATE

RHS

1шт.

14

87243413

SUPPORT

SUPPORT [LHS]

1шт.

15

87251069

SUPPORT

SUPPORT [RHS]

1шт.

16

87243417

GUSSET

GUSSET

2шт.

17

442110A1

COVER ASSY

1шт.

18

87251098

DEFLECTOR

1шт.

19

87254898

PLATE ASSY.

SILL

1шт.

20

87413915

PLATE ASSY.

DEFLECTOR

1шт.

21

87422539

SPACER

SPACER

2шт.

22

86972500

ANGLE

MOUNT

1шт.

23

86972600

RUBBER

1шт.

24

86972700

MOUNTING PARTS

STRIP

1шт.

25

87246191

CHAMBER

CLEANING ASSEMBLY

1шт.
