Запчасти Case IH 7700 (A06[02]) - CHOPPER FLYWHEEL and GEARBOX Mainframe & Functioning Components

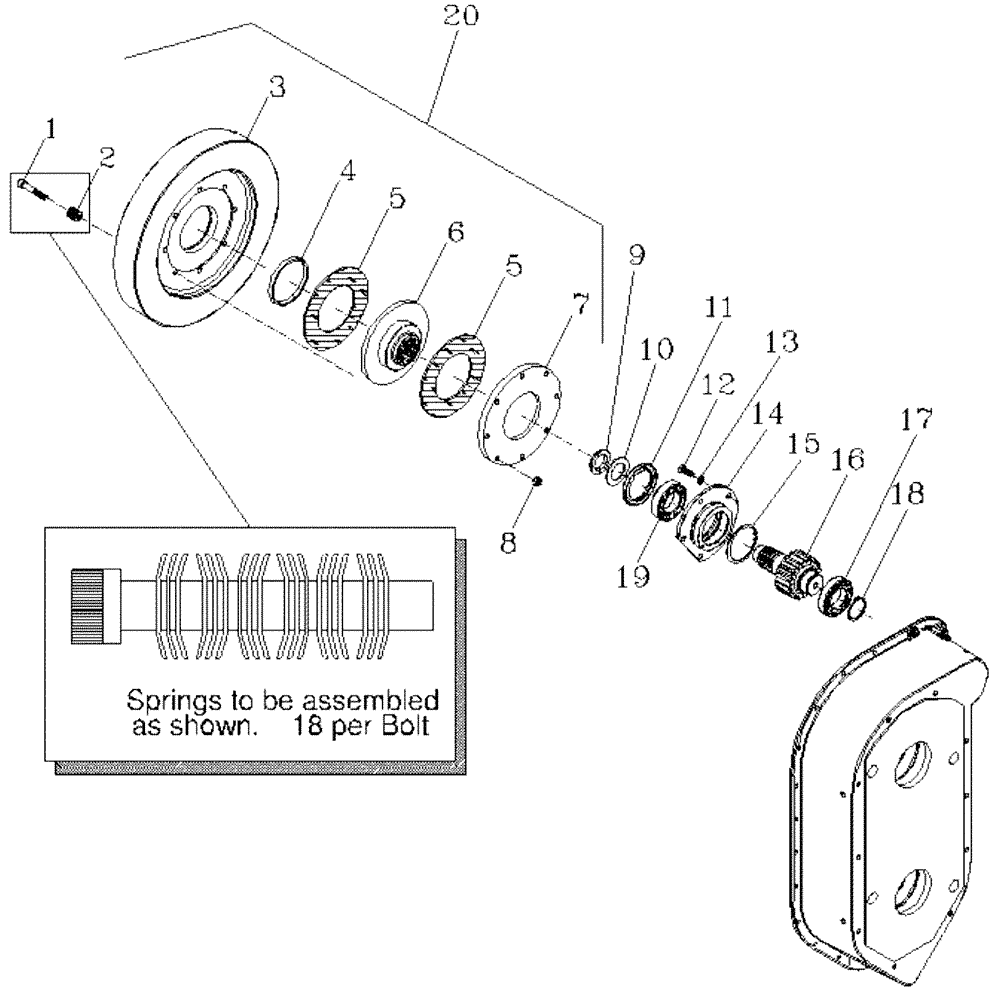

Схема запчастей Case IH 7700 - (A06[02]) - CHOPPER FLYWHEEL and GEARBOX Mainframe & Functioning Components
5
14
2
17
9
20
7
4
1
12
3
5
8
16
19
18
15
11
6
13
10

Артикул

Название

Примечание

Количество

1

FC112075

SCREW,M12 x 1.75 x 75mm

8шт.

Part of Clutch Assembly P/N 87246147

1шт.

2

00130076

WASHER

144шт.

Part of Clutch Assembly P/N 87246147

1шт.

3

87246148

FLYWHEEL

1шт.

Part of Clutch Assembly P/N 87246147

1шт.

4

87220477

BRONZE BUSHING,116.15mm ID x 126.15mm OD x 12mm L

1шт.

Part of Clutch Assembly P/N 87246147

1шт.

5

87220475

SHIM,125mm ID x 220mm OD x 5.15mm Thk

2шт.

Part of Clutch Assembly P/N 87246147

1шт.

6

87220479

ADAPTER

1шт.

Part of Clutch Assembly P/N 87246147

1шт.

7

87220476

CLUTCH, PRESSURE PLA

1шт.

Part of Clutch Assembly P/N 87246147

1шт.

8

NA112000

NUT

8шт.

Part of Clutch Assembly P/N 87246147

1шт.

9

00141225

NUT

1шт.

10

87229334

WASHER,46mm ID x 75mm OD x 4.37mm Thk

1шт.

11

00100717

OIL SEAL

1шт.

12

FA112030

BOLT

6шт.

13

WB120000

WASHER

6шт.

14

87239617

BEARING HOUSING,90 mm ID x 119.95 mm OD x 59 mm

1шт.

15

CI100000

CIRCLIP

1шт.

16

87217726

GEAR

pinion

1шт.

17

00140497

BEARING

1шт.

18

CE055000

CIRCLIP

1шт.

19

00140425

BEARING

1шт.

20

87246147

FLYWHEEL

CLUTCH ASSEMBLY, Includes: Items 1 - 8

1шт.

Выбрано товаров: 28
