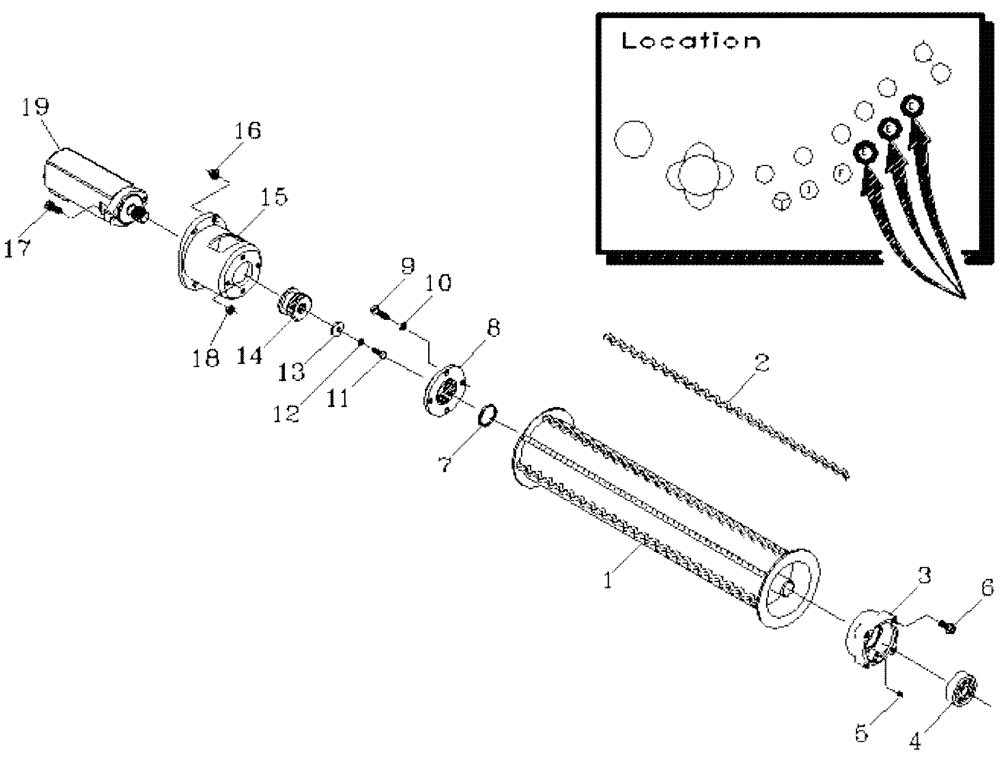

Запчасти Case IH 7700 (A05[09]) - BOTTOM ROLLERS {E} Mainframe & Functioning Components

1

86702001

ROLLER,218.3mm OD x 880mm L

3шт.

2

87116500

SLAT

24шт.

3

87213555

HOUSING, BEARING,87 mm ID x 62 mm

3шт.

4

00140493

BEARING

3шт.

5

00153751

LUBE NIPPLE

grease

3шт.

6

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

12шт.

7

86701900

SPACER,52mm ID x 63mm OD x 5mm L

if required

1шт.

8

86700800

ADAPTER

3шт.

9

FA112025

BOLT

12шт.

10

WB120000

WASHER

12шт.

11

00601499

BOLT

3шт.

12

00605827

WASHER

3шт.

13

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

3шт.

14

86701200

GEAR

pinion

3шт.

15

87217094

HOUSING

OVERALL LENGTH 151MM

3шт.

16

825-51412

FLANGE NUT,M12, Flg Ser

12шт.

17

00604538

SCREW

6шт.

18

00605797

NUT

6шт.

19

HYDRAULIC MOTOR

1шт.

refer to figure B03.01

1шт.
