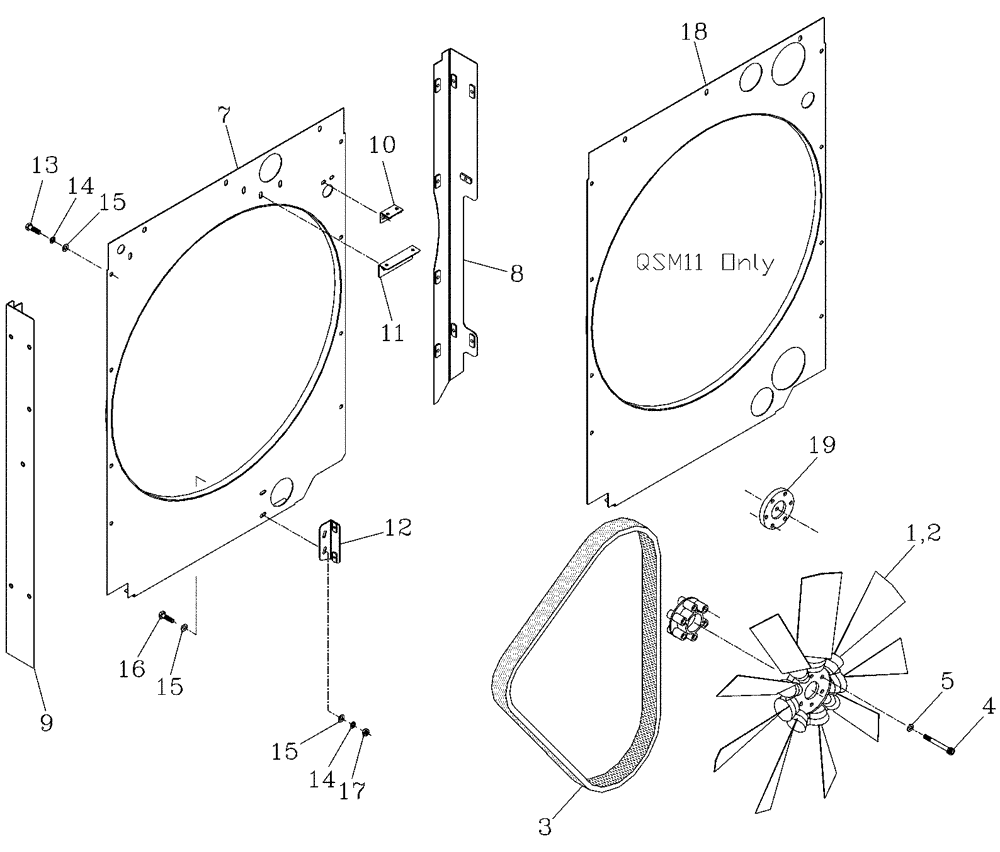

Запчасти Case IH 7700 (C02[05]) - COOLING FAN, DRIVE BELT and SHROUD {M11/QSM11} Engine & Engine Attachments
![Схема запчастей Case IH 7700 - (C02[05]) - COOLING FAN, DRIVE BELT and SHROUD {M11/QSM11} Engine & Engine Attachments](https://partsell.ru/storage/images/caseih/1017959.png)
15
2
19
17
3
18
15
14
15
10
9
4
5
8
14
13
12
11
7
16
1
№
Артикул
Название
Примечание
Количество
1
87232782
FAN
Assembly
1шт.
2
00180477
PACKAGE
Blade
12шт.
3
00181971
BELT
[M11 ONLY]
1шт.
3
448495A1
BELT
[QSM11 Only]
1шт.
4
00608234
SCREW
SCREW
6шт.
5
00605827
WASHER
6шт.
7
435051A1
SHROUD
SHROUD [M11 ONLY]
1шт.
8
398492A1
SUPPORT
SUPPORT [Rear]
1шт.
9
398490A1
SUPPORT
SUPPORT [Front]
1шт.
10
435053A1
MOUNTING PARTS
[Shunt Line]
1шт.
11
434188A1
MOUNTING PARTS
[Top Tube]
1шт.
12
434189A1
MOUNTING PARTS
[Bottom Tube]
1шт.
13
FA110016
BOLT
19шт.
14
WB100000
WASHER
25шт.
15
WA100000
WASHER
31шт.
16
FA110025
BOLT
6шт.
17
NA110000
NUT
6шт.
18
398488A1
SHROUD
SHROUD [QSM11 ONLY]
1шт.
19
87231787
FAN
SPACER [QSM11 ONLY]
2шт.
Выбрано товаров: 19
