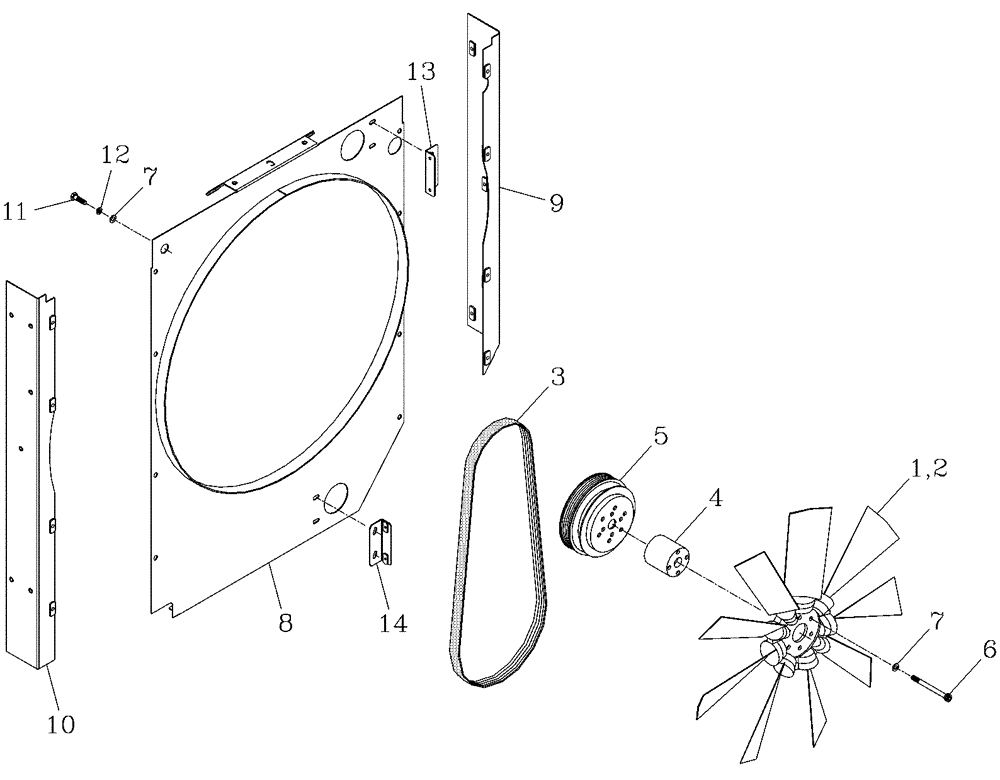

Запчасти Case IH 7700 (C02[03]) - COOLING FAN, DRIVE BELT and SHROUD {6CT} Engine & Engine Attachments

1

87223183

FAN

Assembly

1шт.

2

00180477

PACKAGE

Blade

12шт.

3

00181970

BELT

173mm Dia. Pulley

1шт.

3

00182149

BELT

198mm Dia. Pulley

1шт.

4

87240230

FAN

SPACER

1шт.

5

87235642

PULLEY ASSY.

173mm Dia.

1шт.

5

87255389

PULLEY

198mm Dia.

1шт.

6

FC110110

SCREW

4шт.

7

WA100000

WASHER

20шт.

8

87415083

SHROUD

SHROUD

1шт.

9

87415087

SUPPORT

SUPPORT [Rear]

1шт.

10

87415086

SUPPORT

SUPPORT [Front]

1шт.

11

FA110016

BOLT

16шт.

12

WB100000

WASHER

16шт.

13

434188A1

MOUNTING PARTS

[Top Tube]

1шт.

14

87406661

MOUNTING PARTS

MOUNT [Bottom Tube]

1шт.
