Запчасти Case IH 7700 (B11[02]) - HYDRAULIC CIRCUIT {PKD Roller / Cropdivider and Sidetrim Lift} Hydraulic Components & Circuits

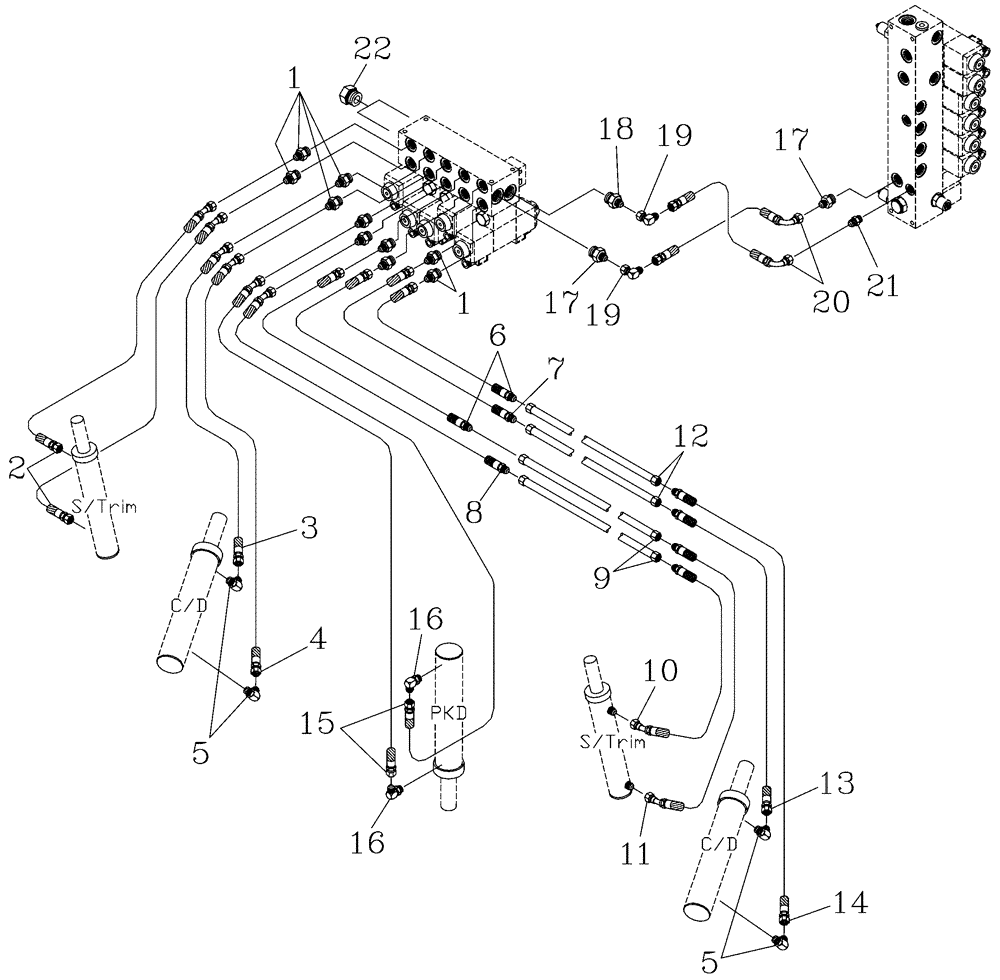

Схема запчастей Case IH 7700 - (B11[02]) - HYDRAULIC CIRCUIT {PKD Roller / Cropdivider and Sidetrim Lift} Hydraulic Components & Circuits
2
12
1
16
18
19
6
22
15
10
1
20
19
16
21
8
11
17
17
7
13
14
5
3
4
5
9

Артикул

Название

Примечание

Количество

1

00400224

HYD CONNECTOR

Nipple

8шт.

2

87256265

HOSE ASSY.

HOSE

2шт.

3

86988676

HOSE,6.35mm ID x 1500mm L, SAE 100R17

HOSE

1шт.

4

87255998

HOSE,6.35mm ID x 1670mm L, SAE 100R17

HOSE

1шт.

5

00400238

HYD CONNECTOR

Elbow

4шт.

6

87423020

HOSE,6.35mm ID x 610mm L, SAE 100R17

HOSE

2шт.

7

87423019

HOSE,6.35mm ID x 650mm L, SAE 100R17

HOSE

1шт.

8

87238307

HOSE,6.35mm ID x 570mm L, SAE 100R17

HOSE

1шт.

9

87423825

TUBE,9.5 mm DIA x 1150 mm L

TUBE

2шт.

10

87423017

HOSE,6.35mm ID x 2000mm L, SAE 100R17

HOSE

1шт.

11

87423018

HOSE,6.35mm ID x 2100mm L, SAE 100R17

HOSE

1шт.

12

87423827

TUBE,9.5 mm DIA x 1100 mm L

TUBE

2шт.

13

87423015

HOSE,6.35mm ID x 1800mm L, SAE 100R17

HOSE

1шт.

14

87423016

HOSE,6.35mm ID x 1950mm L, SAE 100R17

HOSE

1шт.

15

86988883

HOSE,6.35mm ID x 2300mm L, SAE 100R17

HOSE

2шт.

16

00402475

HYD CONNECTOR

Elbow

2шт.

17

00400074

HYD CONNECTOR

Nipple

2шт.

18

444074A1

HYD CONNECTOR

NIPPLE

1шт.

19

00402879

HYD CONNECTOR

Elbow

2шт.

20

86310227

HOSE ASSY.

1шт.

21

00400223

HYD CONNECTOR

Nipple

1шт.

22

00400106

HYD CONNECTOR

Plug

2шт.

Выбрано товаров: 22
