Запчасти Case IH 7700 (B10[05]) - HYDRAULIC CIRCUIT {Elevator} Hydraulic Components & Circuits

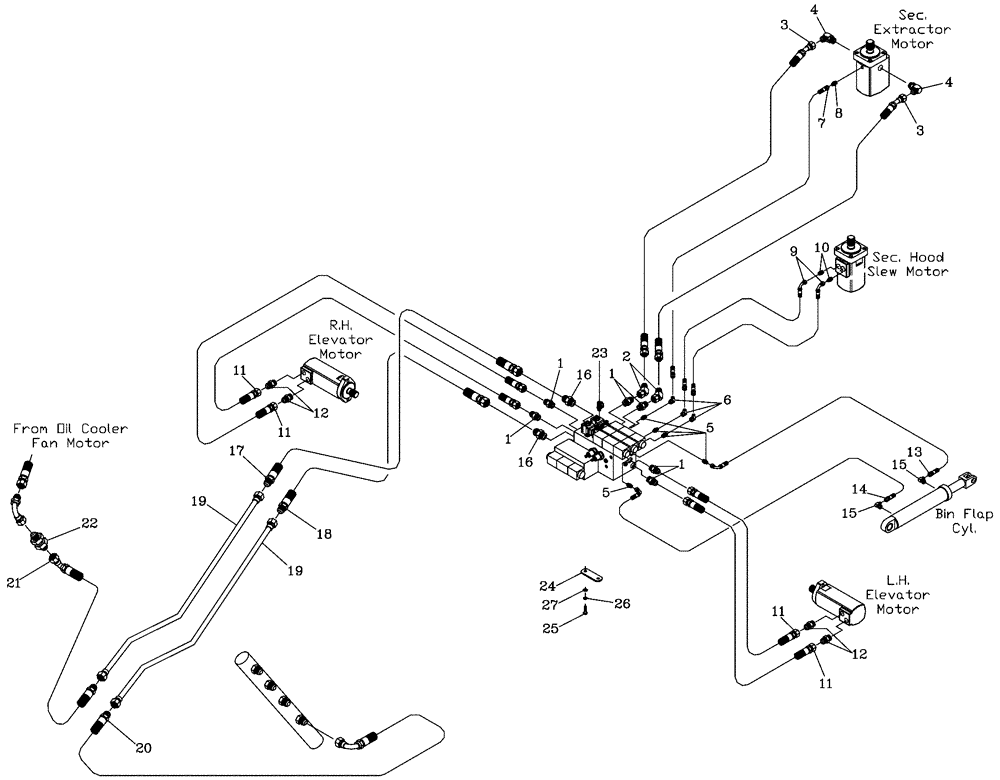

Схема запчастей Case IH 7700 - (B10[05]) - HYDRAULIC CIRCUIT {Elevator} Hydraulic Components & Circuits
20
4
19
11
19
25
15
5
12
13
27
8
16
12
22
7
1
16
1
15
3
1
14
11
6
5
2
18
23
11
24
26
9
17
21
10
4
3
1
11

Артикул

Название

Примечание

Количество

1

00400231

HYD CONNECTOR

Nipple

6шт.

2

00404300

HYD CONNECTOR

Elbow

2шт.

3

87236502

HOSE ASSY.

Extended/+250

2шт.

3

87121700

HOSE

Standard Elevator

2шт.

4

00400246

HYD CONNECTOR

Elbow

2шт.

5

00400223

HYD CONNECTOR

Nipple

5шт.

6

00405173

HYD CONNECTOR

Elbow

3шт.

7

87248824

HOSE,6.35mm ID x 1350mm L, SAE 100R17

Standard elevator

1шт.

7

82713500

HOSE ASSY.

HOSE, Extended/+250

1шт.

8

00400162

HYD CONNECTOR

Nipple

1шт.

9

87236500

HOSE

Standard Elevator

2шт.

9

86327400

HOSE ASSY.

HOSE, Extended/+250

2шт.

10

00400074

HYD CONNECTOR

Nipple

2шт.

11

81965200

HOSE

Standard Elevator

2шт.

11

82714600

HOSE ASSY.

HOSE, Extended/+250

2шт.

12

00400229

HYD CONNECTOR

Nipple

4шт.

13

87217477

HOSE ASSY.

HOSE, Standard Elevator

1шт.

13

86300927

HOSE ASSY.

HOSE, Extended/+250

1шт.

14

86300927

HOSE ASSY.

HOSE, Standard Elevator

1шт.

14

87234593

HOSE,6.35mm ID x 1950mm L, SAE 100R17

HOSE, Extended/+250

1шт.

15

00402879

HYD CONNECTOR

Elbow

2шт.

16

00400234

HYD CONNECTOR

Nipple

2шт.

17

87255996

HOSE ASSY.

HOSE, Standard/Extended Elevator

1шт.

17

87255994

HOSE,25.4mm ID x 1800mm L, SAE 100R17

HOSE, Extended Elevator +250

1шт.

18

419701A1

HOSE

HOSE, Standard/Extended Elevator

1шт.

18

419702A1

HOSE,25.4mm ID x 1900mm L, SAE 100R17

HOSE, Extended Elevator +250

1шт.

19

87247175

TUBE,25.40 mm OD

2шт.

20

87247906

HOSE ASSY.

1шт.

21

87252188

HOSE ASSY.

1шт.

22

00400067

HYD CONNECTOR

B/H Nipple

2шт.

23

00405498

SCREW ON COUPLING

Test Point

1шт.

24

87255819

PLATE

Clamp

2шт.

25

FA110030

BOLT

4шт.

26

WB100000

WASHER

4шт.

27

WA100000

WASHER

4шт.

Выбрано товаров: 35
