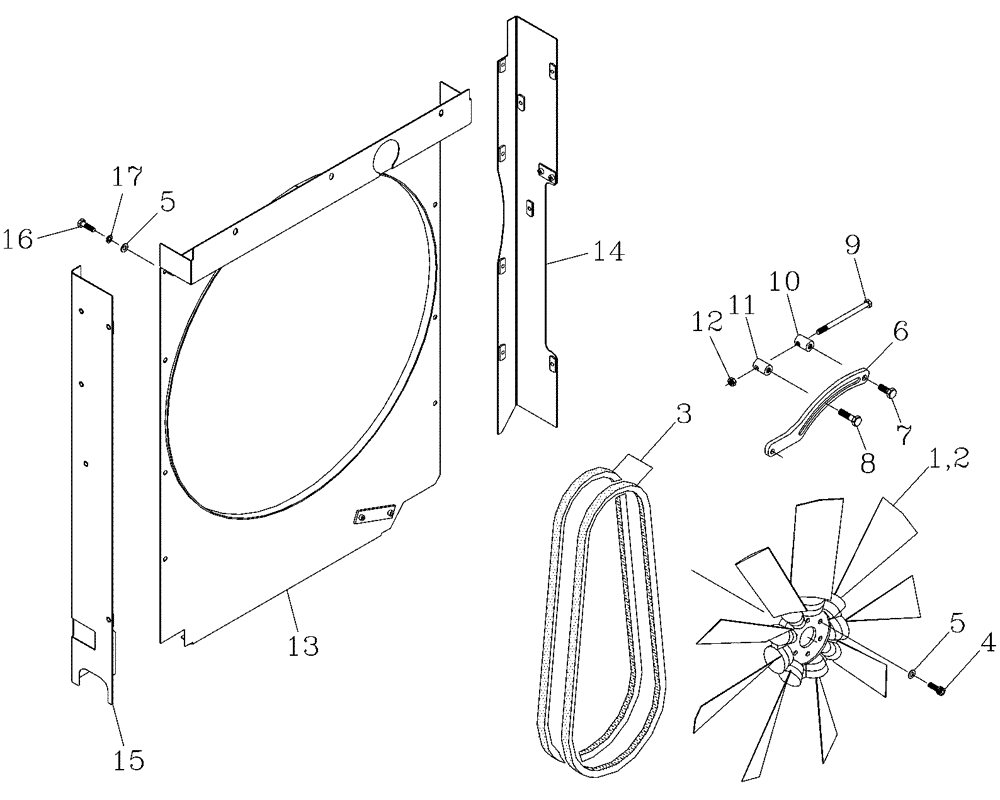

Запчасти Case IH 7700 (C02[01]) - COOLING FAN, DRIVE BELTS and SHROUD {125} Engine & Engine Attachments

1

87232782

FAN

Assembly

1шт.

2

00180477

PACKAGE

Blade

12шт.

3

00180967

BELT

Set

1шт.

4

FC110025

SCREW,M10 x 1.5 x 25mm

6шт.

5

WA100000

WASHER

6шт.

6

87252471

ANCHOR

Bracket

1шт.

7

FA112025

BOLT

1шт.

8

FA112040

BOLT

1шт.

9

87242806

SCREW,M10 x 1.5 x 150mm

1шт.

10

87242804

BOSS

Adjuster

1шт.

11

87242805

BOSS

Adjuster

1шт.

12

NA100000

NUT

1шт.

13

441825A1

SHROUD ASSY.

SHROUD

1шт.

14

441828A1

MOUNTING PARTS

SUPPORT [Rear]

1шт.

15

441830A1

MOUNTING PARTS

SUPPORT [Front}

1шт.

16

FA110016

BOLT

20шт.

17

WB100000

WASHER

20шт.
