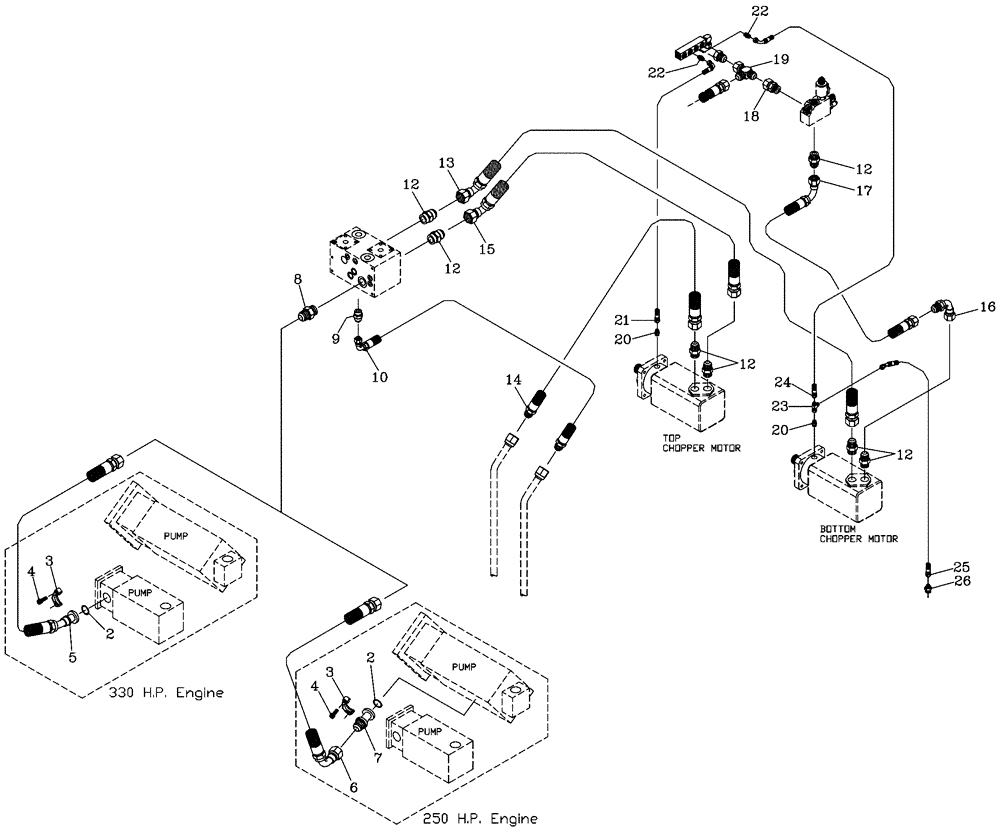

Запчасти Case IH 7700 (B08[05]) - HYDRAULIC CIRCUIT {Chopper} Hydraulic Components & Circuits

2

00100026

O-RING

1шт.

3

00400266

SPECIAL CLAMP

Pair

1шт.

4

00604498

SCREW

4шт.

5

393578A1

HOSE ASSY.

HOSE

1шт.

6

87250099

HOSE

1шт.

7

00409888

HYD CONNECTOR

Adaptor

1шт.

8

00400235

HYD CONNECTOR

Nipple

1шт.

9

00400231

HYD CONNECTOR

Nipple

1шт.

10

86987003

HOSE,19.05mm ID x 1000mm L, SAE 100R17

HOSE

1шт.

12

00400234

HYD CONNECTOR

Nipple

7шт.

13

87401085

HOSE,1650.00 mm

1шт.

14

86987002

HOSE,25.4mm ID x 960mm L, SAE 100R17

HOSE

1шт.

15

87401086

HOSE ASSY.

HOSE

1шт.

16

00403944

HYD CONNECTOR

Bend

1шт.

17

81966700

HOSE,25.4mm ID x 700mm L, SAE 100R16

HOSE

1шт.

18

00410043

ADAPTER

ADAPTOR

1шт.

19

00405811

TEE

1шт.

20

00400074

HYD CONNECTOR

Nipple

2шт.

21

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

1шт.

22

00400223

HYD CONNECTOR

Nipple

2шт.

23

00404677

TEE

1шт.

24

86306891

HOSE ASSY.

HOSE

1шт.

25

87256634

HOSE ASSY.

HOSE

1шт.

26

412122A1

HYD CONNECTOR

Restricted Nipple

1шт.
