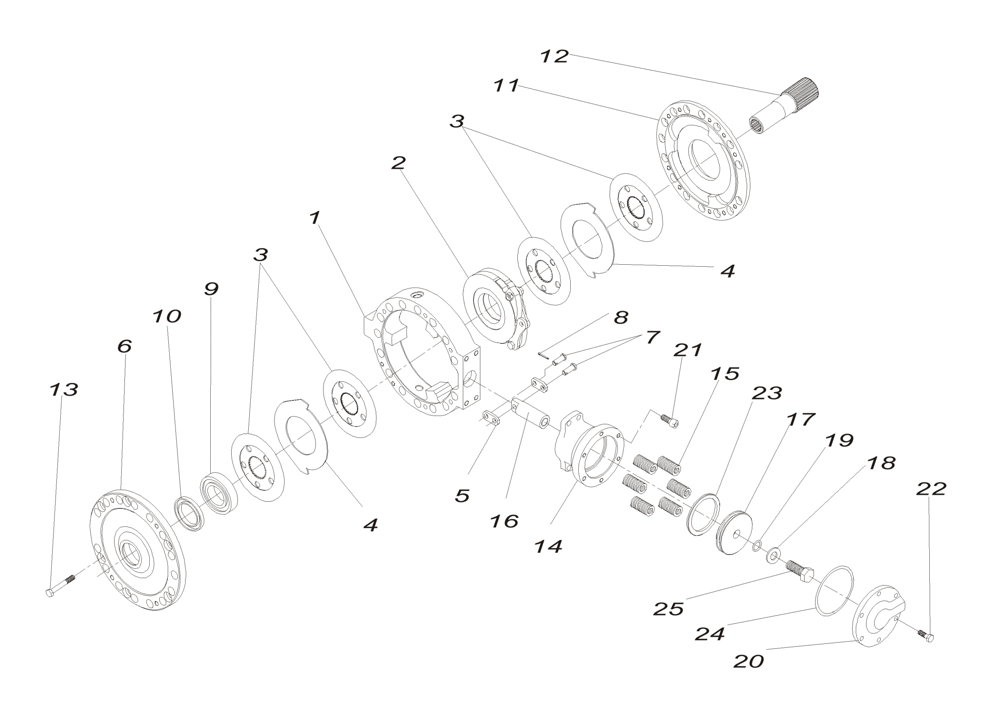

Запчасти Case IH 7000 (A09.04[01]) - Wet Brake {7000} (33) - BRAKES & CONTROLS

1

446833A1

HOUSING

1шт.

2

182153

BRAKE BOOSTER

1шт.

3

182154

DISC

4шт.

4

398412A1

SHIM,95mm ID x 168mm OD x 2.25mm Thk

2шт.

5

398407A1

LINK

2шт.

6

446834A1

BRAKE PLATE

OUTER

1шт.

7

446835A1

PIN,11.1mm OD x 34mm L

2шт.

8

733-3220

COTTER PIN,M3.2 x 20

2шт.

9

NLS

NO LONGER SERVICED

1шт.

10

446784A1

OIL SEAL

1шт.

11

446836A1

BRAKE PLATE

1шт.

12

446837A1

SPLINED COUPLING

1шт.

13

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

6шт.

14

446840A1

HOUSING

1шт.

15

446842A1

COMPRESSION SPRING,Compression, 25.399mm OD x 76mm L

6шт.

16

446841A1

ROD

1шт.

17

446839A1

PISTON

1шт.

18

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

19

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

20

446838A1

COVER

1шт.

21

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

4шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

23

NLS

NO LONGER SERVICED

1шт.

24

86988165

O-RING

1шт.

25

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

1шт.

26

446832A1

BRAKE ASSY.

ASSY

1шт.
