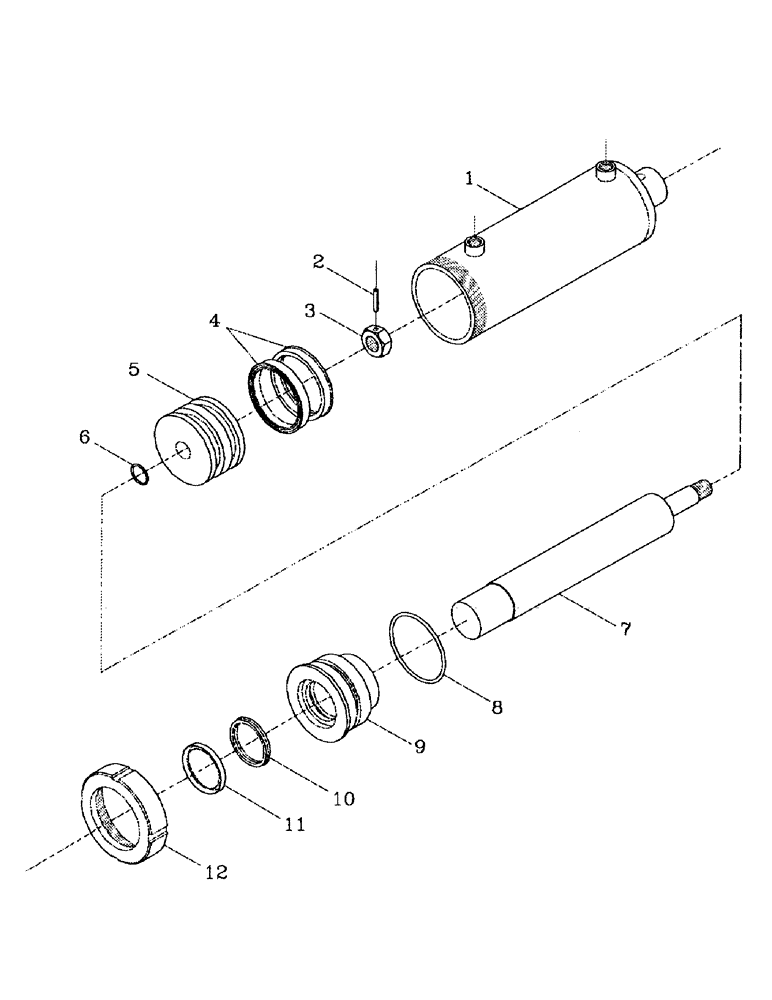

Запчасти Case IH 7000 (B02-07) - HYDRAULIC CYLINDER, TRACK ADJUSTER Hydraulic Components & Circuits

1

87253895

CYLINDER,101.68mm Bore Dia

1шт.

2

00608214

PIN

ROLL PIN

1шт.

3

00606612

NUT

1шт.

4

00100788

OIL SEAL

SEAL

2шт.

5

87219812

CYLINDER,101.54mm Bore, 25.5mm Rod, 60mm W

PISTON

1шт.

6

00100019

O-RING

1шт.

7

87113200

HYDRAULIC CYLINDER,57.15mm OD x 434mm L

ROD

1шт.

8

00100045

O-RING

1шт.

9

87214820

CYLINDER HEAD

HEAD

1шт.

10

00100718

OIL SEAL

SEAL

1шт.

11

00100719

SEAL

WIPER

1шт.

12

87113600

NUT

1шт.

13

87253894

CYLINDER,Double Acting, 57.15mm Rod

ASSEMBLY

1шт.
