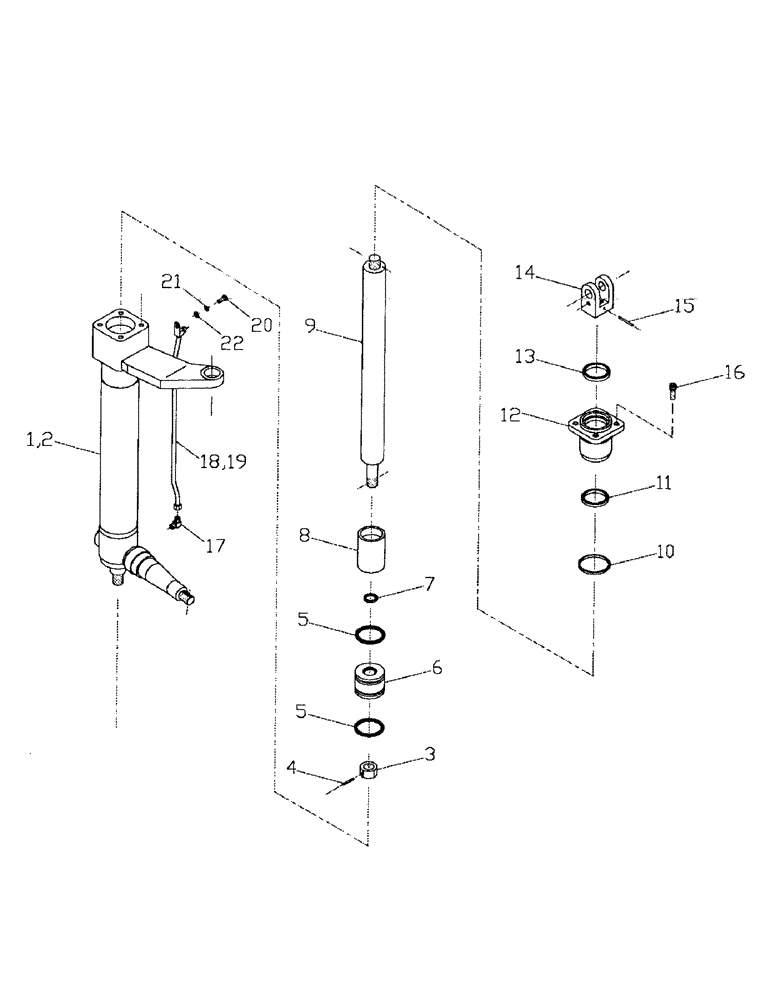

Запчасти Case IH 7000 (B02-04) - HYDRAULIC CYLINDER, BASECUTTER LIFT 7000 Hydraulic Components & Circuits

1

87251279

CYLINDER

BARREL (LH) (Welded Assembly)

1шт.

2

87251280

CYLINDER,82.5mm Bore Dia

BARREL (RH) (Welded Assembly)

1шт.

3

00606613

NUT

1шт.

4

00608214

PIN

1шт.

5

00100710

WIPER SEAL

SEAL

2шт.

6

86742100

CYLINDER,76.08mm Bore, 26.44mm Rod, 60mm W

PISTON

1шт.

7

00100019

O-RING

1шт.

8

86854200

SPACER,57.35mm ID x 69.85mm OD x 100mm L

1шт.

9

86854500

SHAFT,57.15mm OD x 710mm L

ROD

1шт.

10

00100112

O-RING

1шт.

11

00100718

OIL SEAL

SEAL

1шт.

12

87213959

WELDED END

BOSS

1шт.

13

00100719

SEAL

1шт.

14

86786800

CLEVIS

1шт.

15

00606412

PIN

1шт.

16

00604535

SCREW

4шт.

17

00400188

HYD CONNECTOR

ELBOW

1шт.

18

87251287

TUBE,9.50 mm OD x 541 mm L

(LH) (Welded Assembly)

1шт.

19

87251288

TUBE,9.50 mm OD x 541 mm L

(RH) (Welded Assembly)

1шт.

20

00601495

BOLT

1шт.

21

00605827

WASHER

1шт.

22

00605808

WASHER

1шт.

23

87214368

SEAL KIT

1шт.

24

87251285

CYLINDER ASSY.

ASSEMBLY (LH)

1шт.

25

87251286

CYLINDER ASSY.

ASSEMBLY (RH)

1шт.
