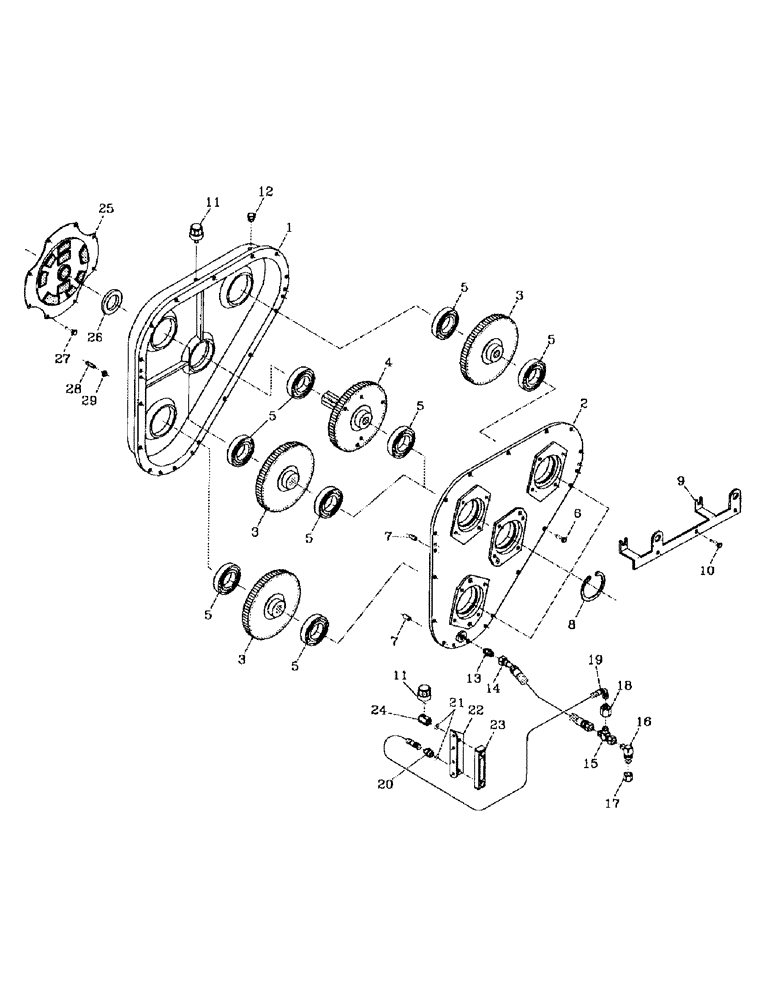

Запчасти Case IH 7000 (C06-08) - GEARBOX, 3306, COMMERCIAL PUMP Engine & Engine Attachments

1

87237513

GEARBOX

1шт.

2

87251563

COVER ASSY

COVER

1шт.

3

87232772

DRIVEN GEAR

GEAR (65 TOOTH)

3шт.

4

87252422

DRIVING GEAR

GEAR (76 TOOTH)

1шт.

5

00140224

BALL BEARING

BEARING

8шт.

6

00601501

BOLT

12шт.

7

00605682

PIN

DOWEL

3шт.

8

CI110000

CIRCLIP

4шт.

9

87252364

ANCHOR

CABLE ANCHOR

1шт.

10

00601511

BOLT

3шт.

11

00407924

FILLER CAP

BREATHER

2шт.

12

00400106

HYD CONNECTOR

PLUG

1шт.

13

00400226

HYD CONNECTOR

NIPPLE

1шт.

14

87216420

HOSE ASSY.

HOSE

1шт.

15

00404679

TEE

1шт.

16

00409554

HYD CONNECTOR

ELBOW

1шт.

17

00400144

HYD CONNECTOR

CAP

1шт.

18

00404798

HYD CONNECTOR

ADAPTOR

1шт.

19

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

1шт.

20

87242103

ADAPTER,9/16" - 18

ADAPTOR

1шт.

21

00100010

O-RING

2шт.

22

87249634

MOUNTING PARTS

MOUNT

1шт.

23

00101646

LEVEL GAUGE CONTROL

GAUGE

1шт.

24

87243672

ADAPTER,M12 x 1.75

ADAPTOR

1шт.

25

00180520

DRIVE PLATE

PLATE

1шт.

26

00100791

OIL SEAL

SEAL

1шт.

27

00604459

SCREW

8шт.

28

87241858

STUD

12шт.

29

00605796

NUT

12шт.

30

87252423

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

31

87243334

DRIVE ASSEMBLY

1шт.

32

87252580

GEARBOX & DRIVE ASSEMBLY

1шт.
