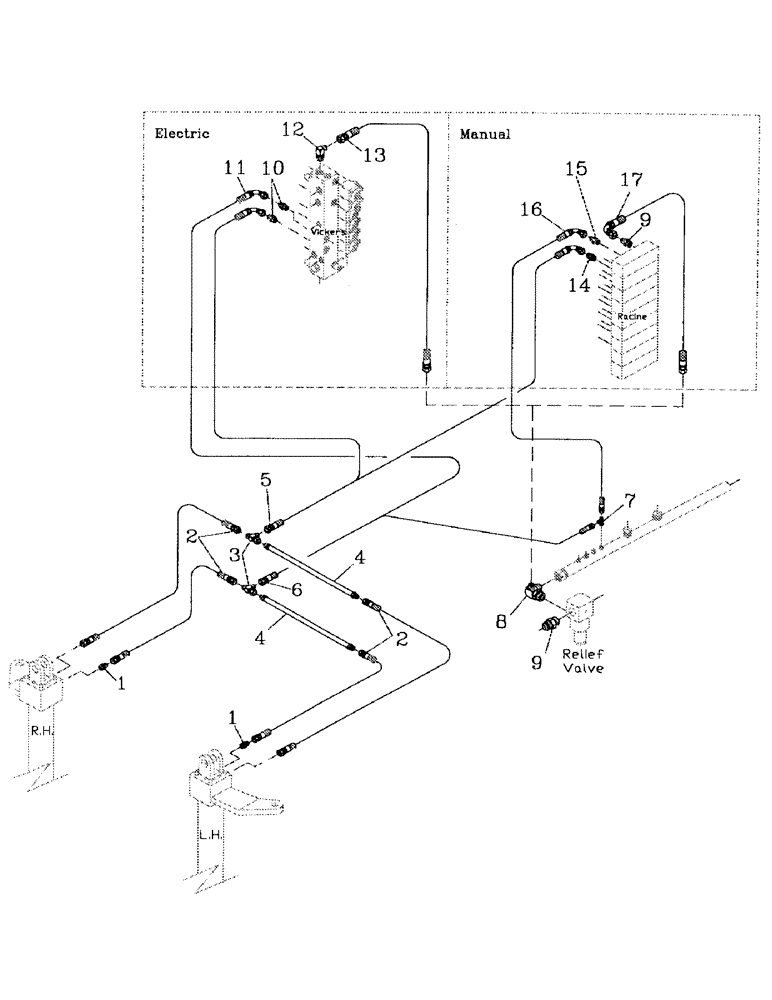

Запчасти Case IH 7000 (B06-35) - HYDRAULIC CIRCUIT, BASECUTTER LIFT 7000 Hydraulic Components & Circuits

1

00400165

HYD CONNECTOR

NIPPLE

2шт.

2

87247518

HOSE ASSY.

HOSE

4шт.

3

00404787

TEE

2шт.

4

87248208

TUBE,9.70 mm ID x 12.70 mm OD x 1000 mm L

2шт.

5

86305889

HOSE ASSY.,9.53mm ID x 680mm L, SAE 100R17

HOSE

1шт.

6

87247946

HOSE

(Manual Only)

1шт.

7

00404677

TEE

1шт.

8

86310816

HYD CONNECTOR

TEE

1шт.

9

00400234

HYD CONNECTOR

NIPPLE

2шт.

10

00400093

HYD CONNECTOR

NIPPLE

2шт.

11

87224457

HOSE

(Electric Only)

1шт.

12

00400242

HYD CONNECTOR

ELBOW

1шт.

13

87242175

HOSE,12.7mm ID x 720mm L, SAE 100R17

1шт.

14

00400073

HYD CONNECTOR

NIPPLE

1шт.

15

00400074

HYD CONNECTOR

NIPPLE

1шт.

16

87247940

HOSE

1шт.

17

86309806

HOSE,12.7mm ID x 830mm L, SAE 100R16

1шт.
