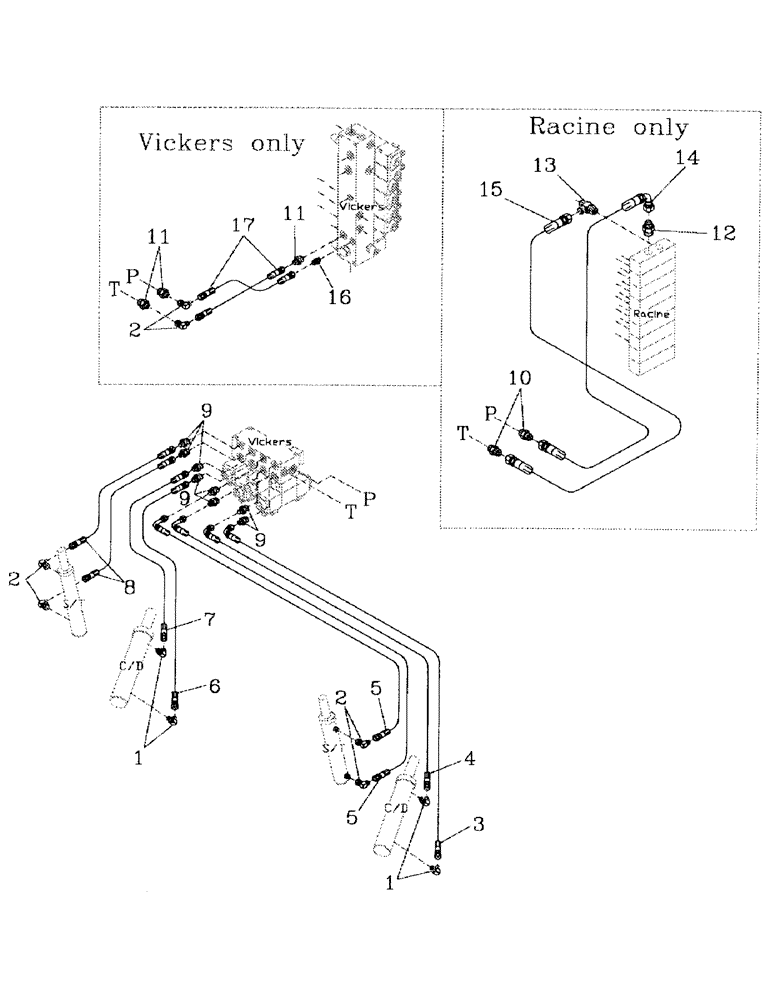

Запчасти Case IH 7000 (B06-33) - HYDRAULIC CIRCUIT, C/D & S/T LIFT OPTION Hydraulic Components & Circuits

1

00400238

HYD CONNECTOR

ELBOW

4шт.

2

00402879

HYD CONNECTOR

ELBOW

6шт.

3

86307482

HOSE

HYDRAULIC HOSE

1шт.

4

82743400

HOSE

1шт.

5

87254527

HOSE,6.35mm ID x 3150mm L, SAE 100R17

2шт.

6

87218787

HOSE

1шт.

7

87217475

HOSE

1шт.

8

82713500

HOSE ASSY.

HOSE

2шт.

9

00400224

HYD CONNECTOR

NIPPLE

8шт.

10

00400228

HYD CONNECTOR

NIPPLE

2шт.

11

00400074

HYD CONNECTOR

NIPPLE

3шт.

12

00409870

ADAPTER

NIPPLE

1шт.

13

00402147

TEE

1шт.

14

86300987

HOSE ASSY.

HOSE

1шт.

15

81681200

HOSE ASSY.

HOSE

1шт.

16

00400223

HYD CONNECTOR

NIPPLE

1шт.

17

81677900

HOSE ASSY.,6.35 mm ID x 760.00 mm, SAE 100R17

HOSE, 6.35 mm ID x 760.00 mm, SAE 100R17

1шт.
