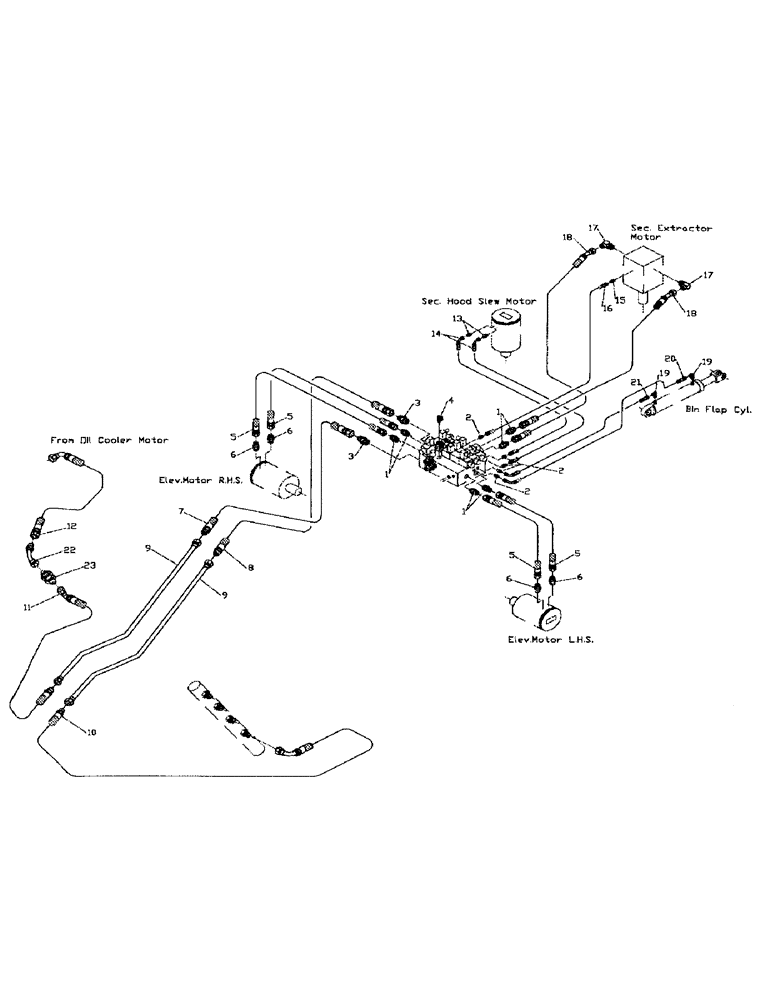

Запчасти Case IH 7000 (B06-26) - HYDRAULIC CIRCUIT, ELEVATOR Hydraulic Components & Circuits

1

00400231

HYD CONNECTOR

NIPPLE

6шт.

2

00400223

HYD CONNECTOR

NIPPLE

5шт.

3

00400234

HYD CONNECTOR

NIPPLE

2шт.

4

00405498

SCREW ON COUPLING

TEST POINT

1шт.

5

86306950

HOSE

HYDRAULIC HOSE (Standard Elevator)

4шт.

5

82701900

HOSE (Extended Elevator) (Louisiana)

4шт.

6

00400229

HYD CONNECTOR

NIPPLE

4шт.

7

87250079

HOSE ASSY.

HOSE

1шт.

8

87250080

HOSE

1шт.

9

87247175

TUBE,25.40 mm OD

2шт.

10

87247906

HOSE ASSY.

HOSE

1шт.

11

87252188

HOSE ASSY.

HOSE

1шт.

12

82765500

HOSE,25.4mm ID x 2130mm L, SAE 100R16

1шт.

13

00400074

HYD CONNECTOR

NIPPLE

2шт.

14

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

(Standard Elevator)

2шт.

14

82742800

HOSE

Extended Elevator

2шт.

14

86308613

HOSE (Louisiana)

2шт.

15

00400162

HYD CONNECTOR

NIPPLE

1шт.

16

86493600

HOSE,6.35mm ID x 1420mm L, SAE 100R17

(Standard Elevator)

1шт.

16

82713500

HOSE ASSY.

HOSE (Extended Elevator)

1шт.

16

87247522

HOSE ASSY.,6.35mm ID x 2170mm L, SAE 100R17

HOSE (Louisiana)

1шт.

17

00400246

HYD CONNECTOR

ELBOW

2шт.

18

82762800

HOSE

Standard Elevator

2шт.

18

87236502

HOSE ASSY.

HOSE (Extended Elevator)

2шт.

18

87235711

HOSE ASSY.

HOSE (Louisiana)

2шт.

19

00402879

HYD CONNECTOR

ELBOW

2шт.

20

87216961

HOSE

(Standard Elevator)

1шт.

20

87238682

ASSEMBLY

HOSE (Extended Elevator)

1шт.

20

87252509

HOSE (Louisiana)

1шт.

21

84004000

HOSE,6.35mm ID x 1670mm L, SAE 100R17

(Standard Elevator)

1шт.

21

86312482

HOSE ASSY.

HOSE (Extended Elevator)

1шт.

21

87038500

HOSE

(Louisiana)

1шт.

22

00403944

HYD CONNECTOR

BEND

1шт.

23

00400067

HYD CONNECTOR

NIPPLE

1шт.
