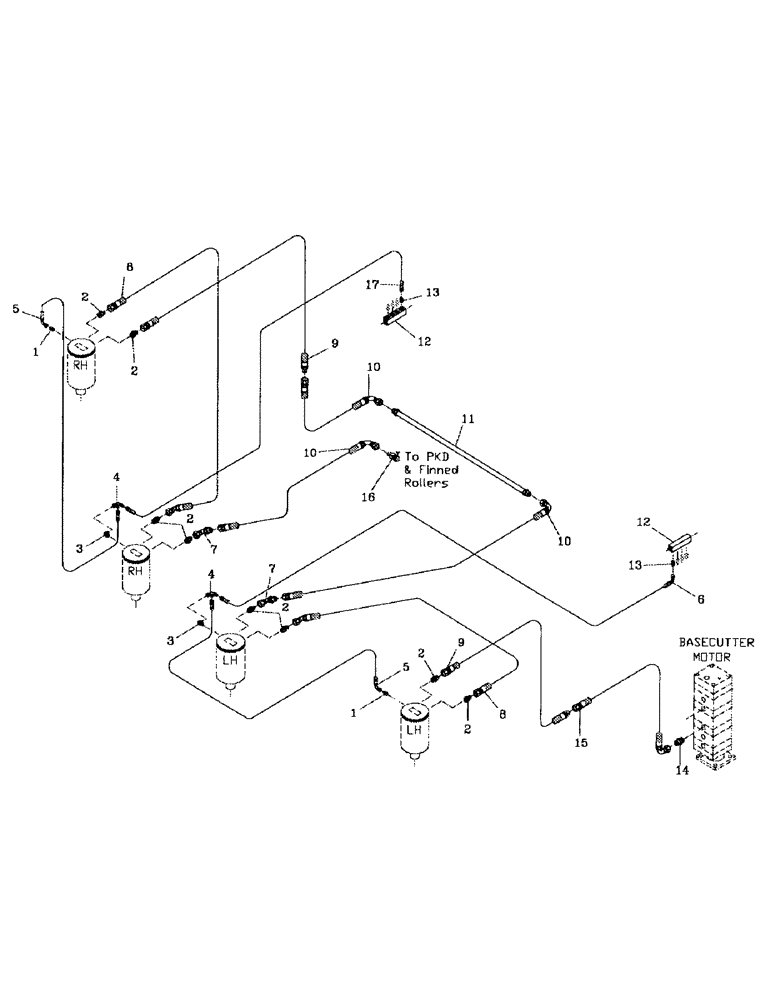

Запчасти Case IH 7000 (B06-24) - HYDRAULIC CIRCUIT, CROPDIVIDER SPIRALS Hydraulic Components & Circuits

1

00402235

HYD CONNECTOR

NIPPLE

2шт.

2

00400229

HYD CONNECTOR

NIPPLE

8шт.

3

00405242

HYD CONNECTOR

ELBOW

2шт.

4

87219738

ADAPTER

ADAPTOR

2шт.

5

87238290

HOSE

(Std. Spiral)

2шт.

5

87253835

HOSE ASSY.

HOSE (Ext. Spiral)

2шт.

6

86315420

HOSE ASSY.

HOSE

1шт.

7

00408418

HYD CONNECTOR

BEND

2шт.

8

87121700

HOSE

(Std. Spiral)

2шт.

8

86832900

HOSE ASSY.

HOSE (Ext. Spiral)

2шт.

9

87244034

HOSE

(Std. Spiral)

2шт.

9

87252197

HOSE (Ext. Spiral)

2шт.

10

87247511

HOSE ASSY.

HOSE

3шт.

11

87235204

TUBE,25.40 mm OD x 1162 mm L

1шт.

12

00409953

RETURN PIPE

MANIFOLD

2шт.

13

00400223

HYD CONNECTOR

NIPPLE

2шт.

14

00400231

HYD CONNECTOR

NIPPLE

1шт.

15

86330600

HOSE ASSY.

HOSE

1шт.

16

00408642

TEE

1шт.

17

82713700

HOSE,6.35mm ID x 2800mm L, SAE 100R17

1шт.
