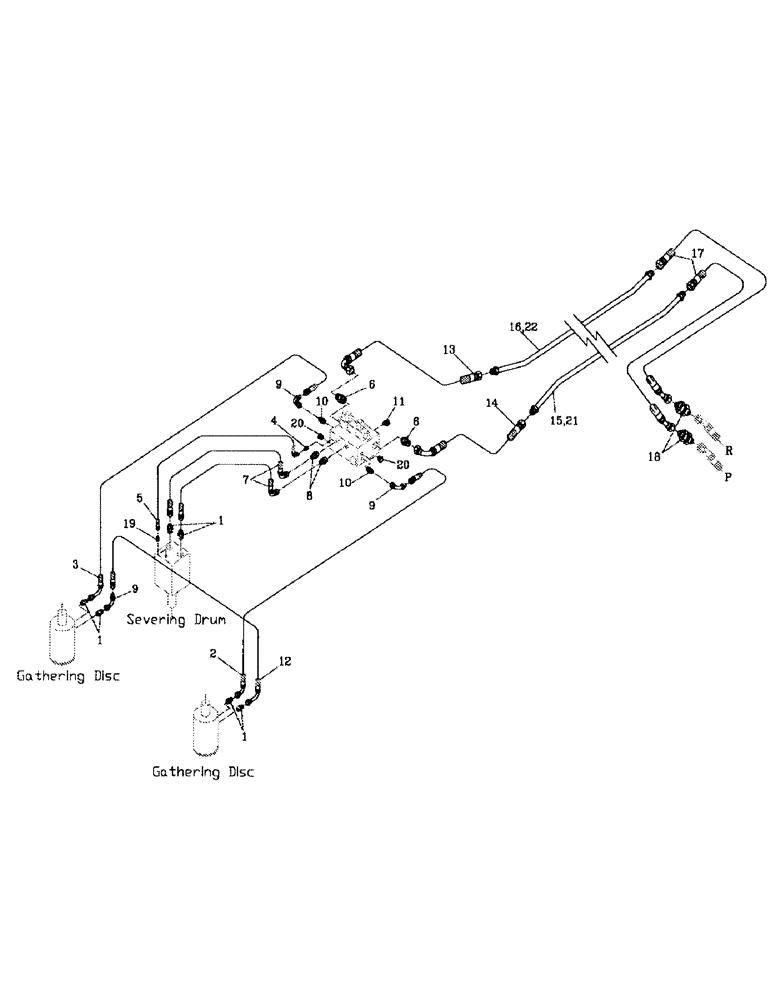

Запчасти Case IH 7000 (B06-18) - HYDRAULIC CIRCUIT, STANDARD TOPPER Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

NIPPLE

6шт.

2

86303537

HOSE ASSY.

HOSE

1шт.

3

87214349

HOSE,12.7mm ID x 1280mm L, SAE 100R17

1шт.

4

00400223

HYD CONNECTOR

NIPPLE

1шт.

5

82742800

HOSE

1шт.

6

00400234

HYD CONNECTOR

NIPPLE

2шт.

7

87221500

HOSE

2шт.

8

00400230

HYD CONNECTOR

NIPPLE

2шт.

9

00407516

HYD CONNECTOR

BEND

3шт.

10

00400226

HYD CONNECTOR

NIPPLE

2шт.

11

00405498

SCREW ON COUPLING

TEST POINT

3шт.

12

87067400

HOSE ASSY.

HOSE

1шт.

13

81678500

HOSE

1шт.

14

82758300

HOSE

1шт.

15

87254264

TUBE,21.40 mm ID x 25.40 mm OD

(LH) STD.

1шт.

16

87254265

TUBE,25.40 mm DIA

(RH) STD.

1шт.

17

87213900

HOSE

2шт.

18

00400067

HYD CONNECTOR

HOSE

2шт.

19

00402235

HYD CONNECTOR

NIPPLE

1шт.

20

00400106

HYD CONNECTOR

PLUG

2шт.
