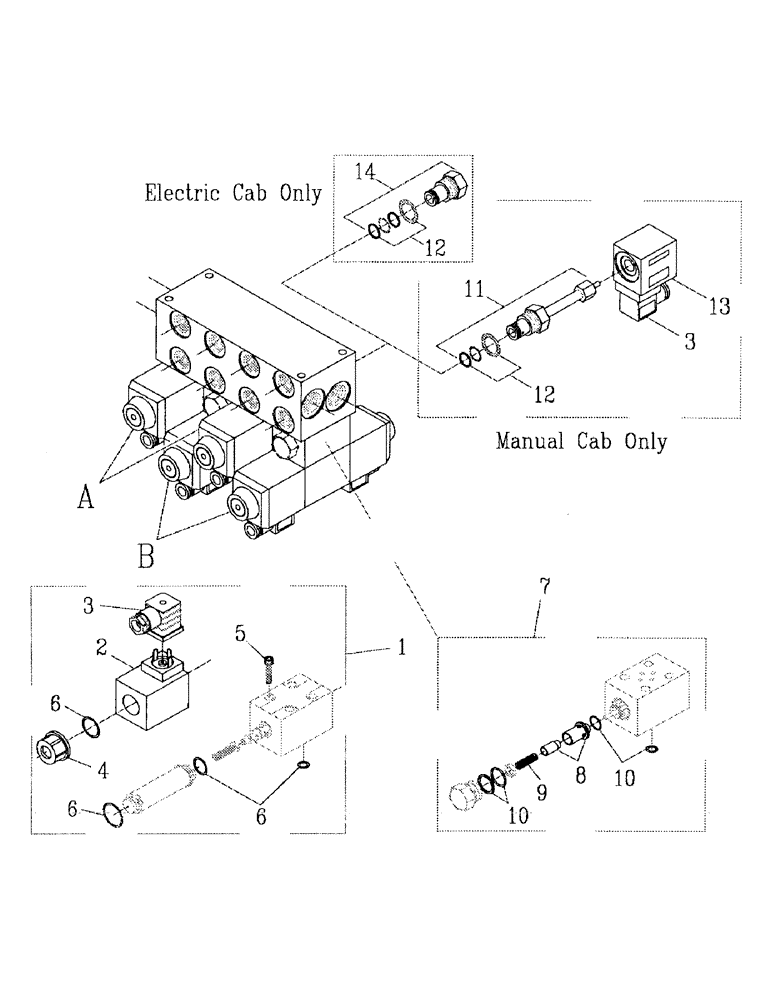

Запчасти Case IH 7000 (B05-10) - HYDRAULIC VALVE, S/TRIM & C/D LIFT Hydraulic Components & Circuits

1

00410121

HYDRAULIC VALVE

CETOP ASSY 'A'

2шт.

1

00410122

HYDRAULIC VALVE

CETOP ASSY 'B'

2шт.

2

00409922

COIL

SOLENOID COIL

2шт.

3

00409524

ELEC CONNECTOR

PLUG

2шт.

4

00409924

NUT

NYLON NUT

2шт.

5

00409891

BOLT

KIT ASSY 'A'

1шт.

5

00410117

KIT

BOLT KIT ASSY 'B'

1шт.

6

00409929

SEAL KIT

1шт.

7

00410116

VALVE

- PILOT CHECK

2шт.

8

00410169

KIT

poppet

2шт.

9

00410170

SPRING

KIT

1шт.

10

00410171

SEAL KIT

1шт.

11

00410038

SOLENOID

CARTRIDGE - MANUAL CAB

1шт.

12

00408151

SEAL KIT

1шт.

13

00410172

SOLENOID

COIL

1шт.

14

00409847

PLUG

1шт.

15

00410025

VALVE

ASSY - 4 BANK, ELECTRIC CAB

1шт.

15

00410028

VALVE

ASSY - 4 BANK, MANUAL CAB

1шт.

15

00410026

VALVE

ASSY - 5 BANK

1шт.
