(B06-00) - HYDRAULIC CIRCUIT, ELEVATOR

Запчасти Case IH 7000 (B06-00) - HYDRAULIC CIRCUIT, ELEVATOR Hydraulic Components & Circuits

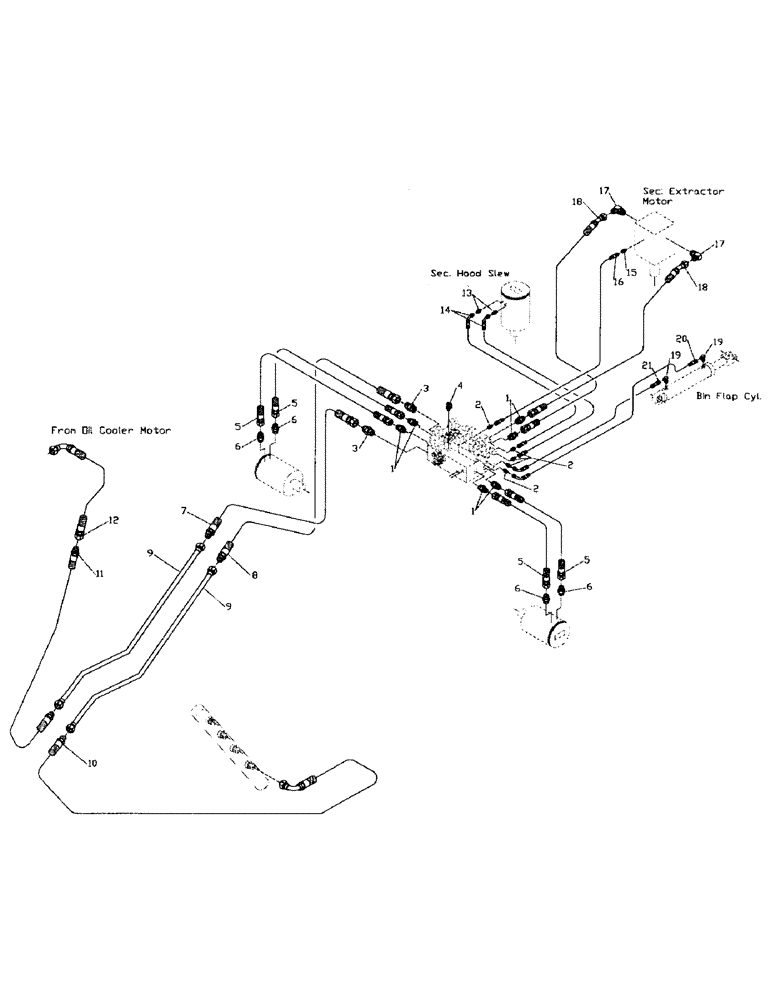

Схема запчастей Case IH 7000 - (B06-00) - HYDRAULIC CIRCUIT, ELEVATOR Hydraulic Components & Circuits
19
13
6
20
2
5
9
6
14
8
3
17
6
12
4
5
2
1
2
18
17
9
5
6
11
5
1
1
18
15
21
7
10
19
3
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00400231

HYD CONNECTOR

NIPPLE

6шт.

2

00400223

HYD CONNECTOR

NIPPLE

5шт.

3

00400234

HYD CONNECTOR

NIPPLE

2шт.

4

00405498

SCREW ON COUPLING

TEST POINT

1шт.

5

87222022

HYDRAULIC HOSE

4шт.

6

00400229

HYD CONNECTOR

NIPPLE

4шт.

7

87247127

HOSE

1шт.

8

87247125

HOSE

1шт.

9

87247175

TUBE,25.40 mm OD

2шт.

10

87247906

HOSE ASSY.

HOSE

1шт.

11

87247905

HOSE

1шт.

12

87221475

HOSE

HYDRAULIC HOSE

1шт.

13

00400074

HYD CONNECTOR

NIPPLE

2шт.

14

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

(Standard Elevator)

2шт.

14

82742800

HOSE

Extended Elevator

2шт.

15

00400162

HYD CONNECTOR

NIPPLE

1шт.

16

86493600

HOSE,6.35mm ID x 1420mm L, SAE 100R17

(Standard Elevator)

1шт.

16

82713500

HOSE ASSY.

HOSE (Extended Elevator)

1шт.

17

00400246

HYD CONNECTOR

ELBOW

2шт.

18

82762800

HOSE

Standard Elevator

2шт.

18

87236502

HOSE ASSY.

HOSE (Extended Elevator)

2шт.

19

00402879

HYD CONNECTOR

ELBOW

2шт.

20

87216961

HOSE

(Standard Elevator)

1шт.

20

87238682

ASSEMBLY

HOSE (Extended Elevator)

1шт.

21

84004000

HOSE,6.35mm ID x 1670mm L, SAE 100R17

(Standard Elevator)

1шт.

21

86312482

HOSE ASSY.

HOSE (Extended Elevator)

1шт.
