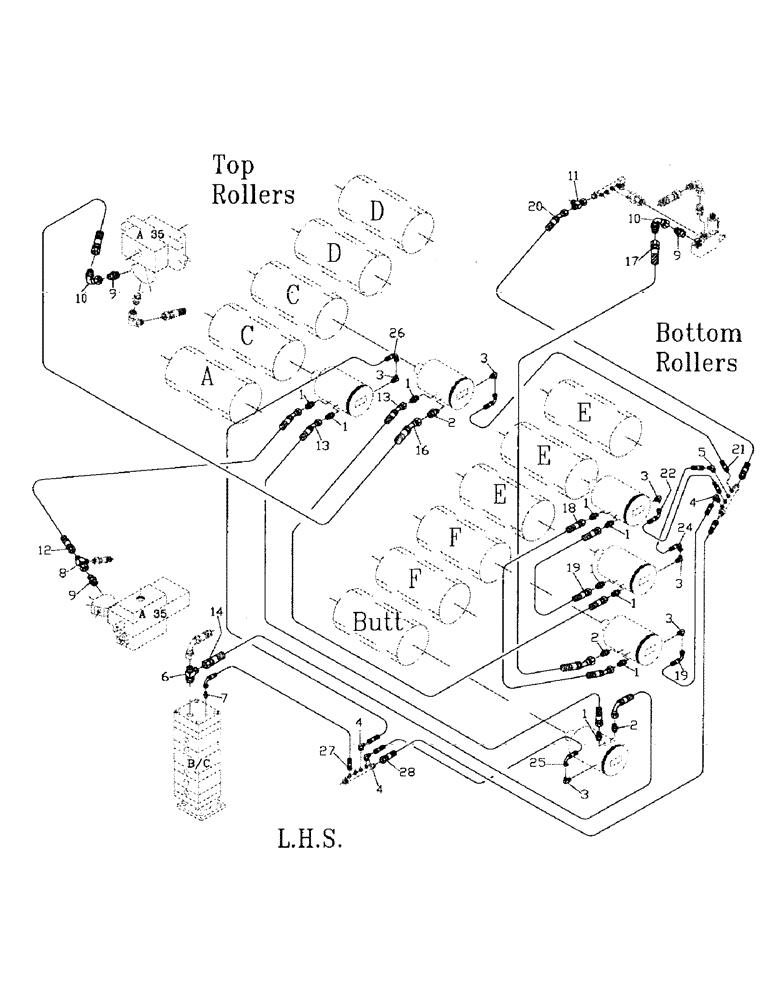

Запчасти Case IH 7000 (B05-67) - HYDRAULIC CIRCUIT, ROLLERS, LEFT HAND 15 INCH CHOP, FLORIDA OPTION Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

NIPPLE

9шт.

2

00402229

NIPPLE

3шт.

3

00405242

HYD CONNECTOR

ELBOW

6шт.

4

00402879

HYD CONNECTOR

ELBOW

3шт.

5

00405173

HYD CONNECTOR

ELBOW

1шт.

6

00402106

TEE

1шт.

7

00409223

TEE

NIPPLE

1шт.

8

87217877

TEE

1шт.

9

00400231

HYD CONNECTOR

NIPPLE

3шт.

10

00407045

HYD CONNECTOR

BEND

2шт.

11

00404679

TEE

1шт.

12

86315170

HOSE ASSY.

HOSE

1шт.

13

86310712

HOSE ASSY.

HOSE

1шт.

14

87218997

HOSE ASSY.

HOSE

1шт.

15

86313828

HOSE ASSY.

HOSE

1шт.

16

87236502

HOSE ASSY.

HOSE

1шт.

17

87032300

HOSE ASSY.

HOSE

1шт.

18

87247531

HOSE ASSY.

HOSE

1шт.

19

86313520

HOSE ASSY.

HOSE

1шт.

20

86420800

HYDRAULIC HOSE

1шт.

21

86310227

HOSE ASSY.

HOSE

1шт.

22

82712000

HOSE

1шт.

24

86327600

HOSE ASSY.

HOSE

1шт.

25

82737000

HOSE

1шт.

26

82704100

HOSE

1шт.

27

86302756

HOSE ASSY.

HOSE

1шт.

28

87214701

HOSE

1шт.
