(B05-55) - HYDRAULIC CIRCUIT, POWER KNOCKDOWN ROLLER AND FINNED ROLLER, LEG BASECUTTER- FLORIDA OPTION

Запчасти Case IH 7000 (B05-55) - HYDRAULIC CIRCUIT, POWER KNOCKDOWN ROLLER AND FINNED ROLLER, LEG BASECUTTER- FLORIDA OPTION Hydraulic Components & Circuits

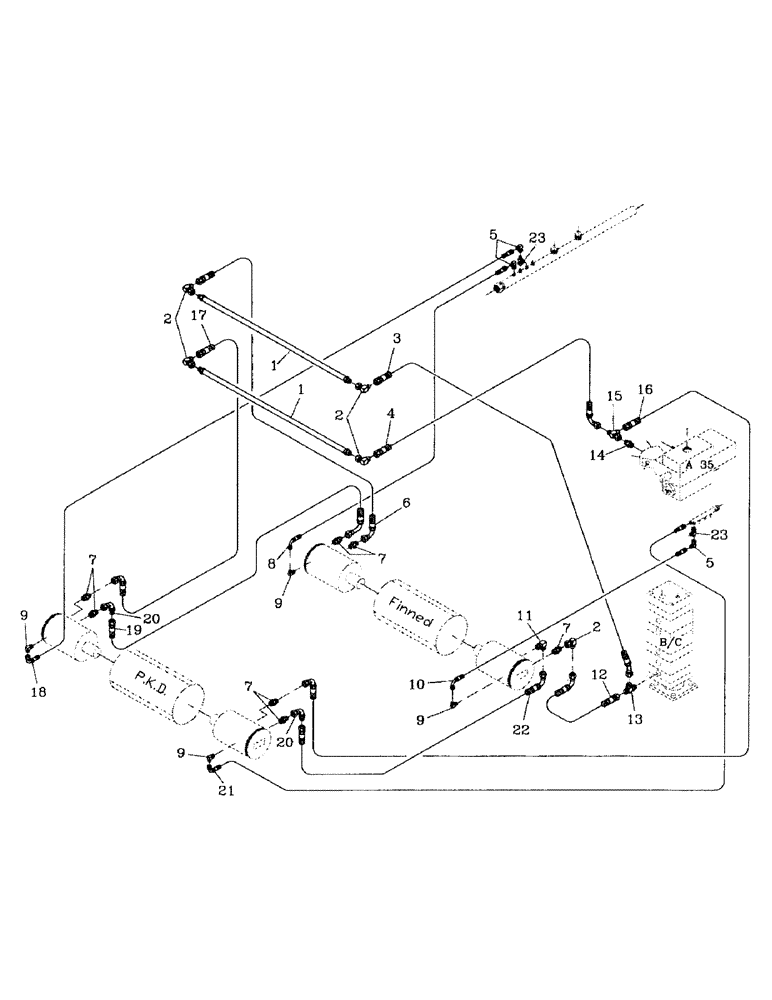

Схема запчастей Case IH 7000 - (B05-55) - HYDRAULIC CIRCUIT, POWER KNOCKDOWN ROLLER AND FINNED ROLLER, LEG BASECUTTER- FLORIDA OPTION Hydraulic Components & Circuits
16
4
7
19
35
9
20
15
20
2
7
6
7
5
11
2
10
13
3
9
23
9
7
8
1
9
17
21
12
23
5
14
2
18
1
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87248207

TUBE,16 mm OD x 1000 mm L

2шт.

2

00402451

HYD CONNECTOR

ELBOW

5шт.

3

86310712

HOSE ASSY.

HOSE

1шт.

4

87216993

HOSE

1шт.

5

00402879

HYD CONNECTOR

ELBOW

3шт.

6

86308523

HOSE ASSY.

HOSE

1шт.

7

00400228

HYD CONNECTOR

NIPPLE

7шт.

8

86310227

HOSE ASSY.

HOSE

1шт.

9

00405242

HYD CONNECTOR

ELBOW

4шт.

10

81678000

HOSE ASSY.

HOSE

1шт.

11

00400242

HYD CONNECTOR

ELBOW

1шт.

12

86300987

HOSE ASSY.

HOSE

1шт.

13

00409237

TEE

1шт.

14

00400231

HYD CONNECTOR

NIPPLE

1шт.

15

87217877

TEE

1шт.

16

87222414

HOSE,12.7mm ID x 2200mm L, SAE 100R16

1шт.

17

82732900

HOSE ASSY.

HOSE

1шт.

18

87237581

HOSE ASSY.

HOSE

1шт.

19

86329600

HOSE

1шт.

20

00407516

HYD CONNECTOR

BEND

2шт.

21

87216749

HOSE ASSY.

HOSE

1шт.

22

82760400

HOSE ASSY.

HOSE

1шт.

23

00404677

TEE

2шт.
