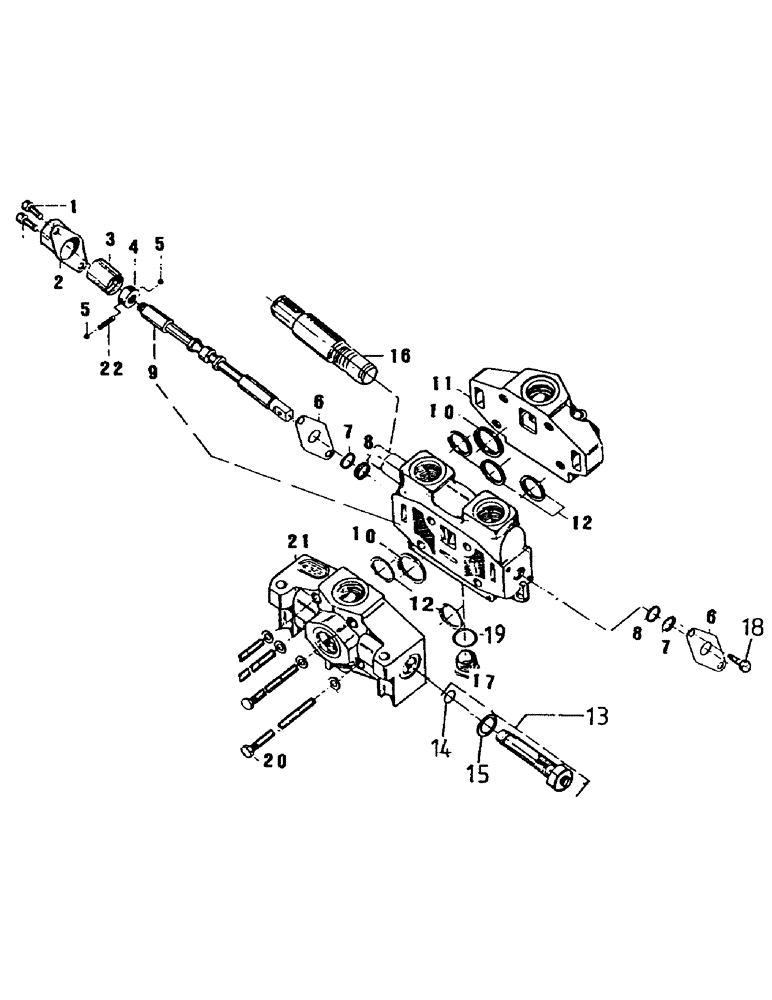

Запчасти Case IH 7000 (B04-15) - HYDRAULIC VALVE, A35, BASECUTTER AND ROLLERS, FLORIDA OPTION Hydraulic Components & Circuits

1

00400456

SCREW

2шт.

2

00400446

CAP

1шт.

3

00400452

SLEEVE

1шт.

4

00400453

RETAINER

1шт.

5

00400454

BALL

2шт.

6

00400451

PLATE

2шт.

7

00407666

SPRING LOCK

RING

2шт.

8

00407665

OIL SEAL

O-RING

2шт.

9

00407659

HYD VALVE SECTION

SPOOL and HOUSING

1шт.

10

00405479

O-RING

2шт.

11

00407660

PUMP, HYDROSTATIC

HOUSING

1шт.

12

00400443

O-RING

6шт.

13

00407678

VALVE PRESSURE RELIE

RELIEF VALVE

1шт.

14

00403727

O-RING

1шт.

15

00402580

GASKET

WASHER

1шт.

16

00405469

VALVE PRESSURE RELIE

RELIEF VALVE

1шт.

17

00407126

CAP

1шт.

18

00407667

BOLT

SCREW

2шт.

19

00401707

O-RING

1шт.

20

00407662

SCREW

BOLT

4шт.

20

00405480

WASHER

4шт.

20

00407664

NUT

4шт.

21

00407658

VALVE

HOUSING

1шт.

22

00400455

SPRING

1шт.

23

00407510

SEAL KIT

1шт.

24

00405509

HYDRAULIC VALVE

ASSEMBLY

1шт.
