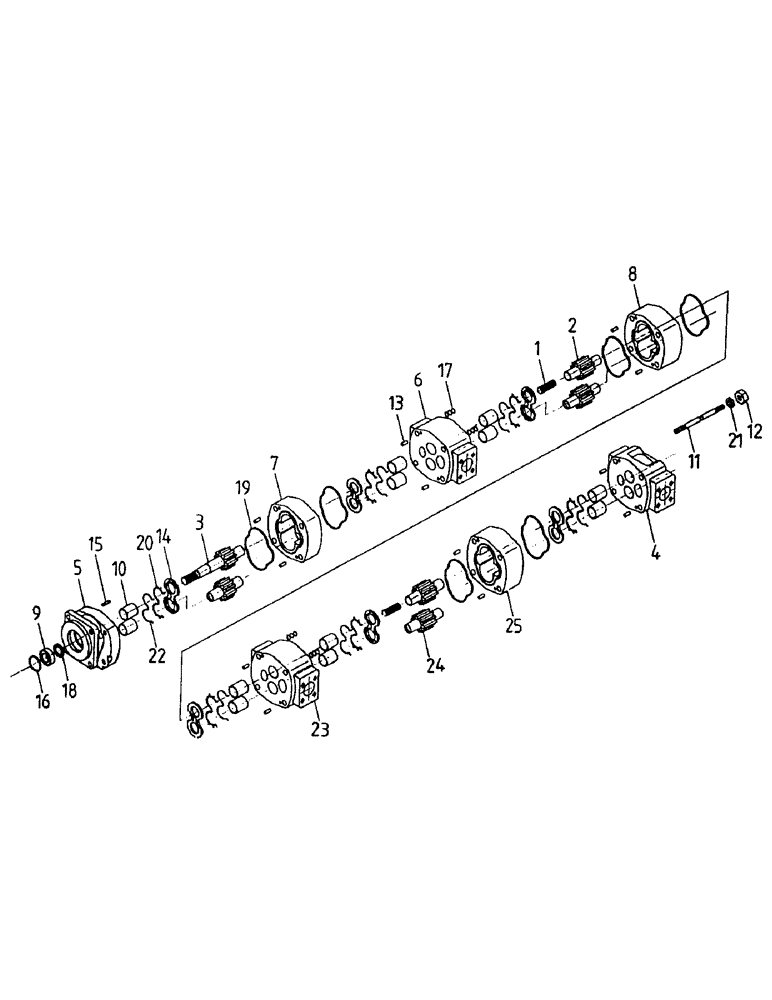

Запчасти Case IH 7000 (B03-20) - HYDRAULIC PUMP, BASECUTTER Hydraulic Components & Circuits

1

00404713

SHAFT

2шт.

2

00404714

GEAR SET

1шт.

3

00407781

GEAR

SET

1шт.

4

00408698

COVER

END COVER

1шт.

5

00404704

SHAFT

END COVER

1шт.

6

00409832

CARRIER

1шт.

7

00407782

TRANSMISSION HOUSING

HOUSING

1шт.

8

00404711

TRANSMISSION HOUSING

HOUSING

1шт.

9

00409751

BALL BEARING

BEARING

1шт.

10

00404705

BUSHING

BUSH

12шт.

11

00403567

ASSEMBLY

STUD

4шт.

12

00400532

NUT

4шт.

13

00404710

DOWEL

PIN

12шт.

14

00408749

RETAINER

THRUST PLATE

6шт.

15

00400512

NIPPLE, LUBE

PLUG

1шт.

16

00400581

RING

SNAP RING

1шт.

17

00409312

O-RING

24шт.

18

00400578

SEAL

1шт.

19

00404709

GASKET

6шт.

20

00409753

SEAL

6шт.

21

00400531

WASHER

4шт.

22

00409754

SEAL

6шт.

23

00408699

CARRIER

1шт.

24

00408700

GEAR

SET

1шт.

25

00408706

TRANSMISSION HOUSING

HOUSING

1шт.

26

00409689

HYDRAULIC PUMP

ASSEMBLY

1шт.
