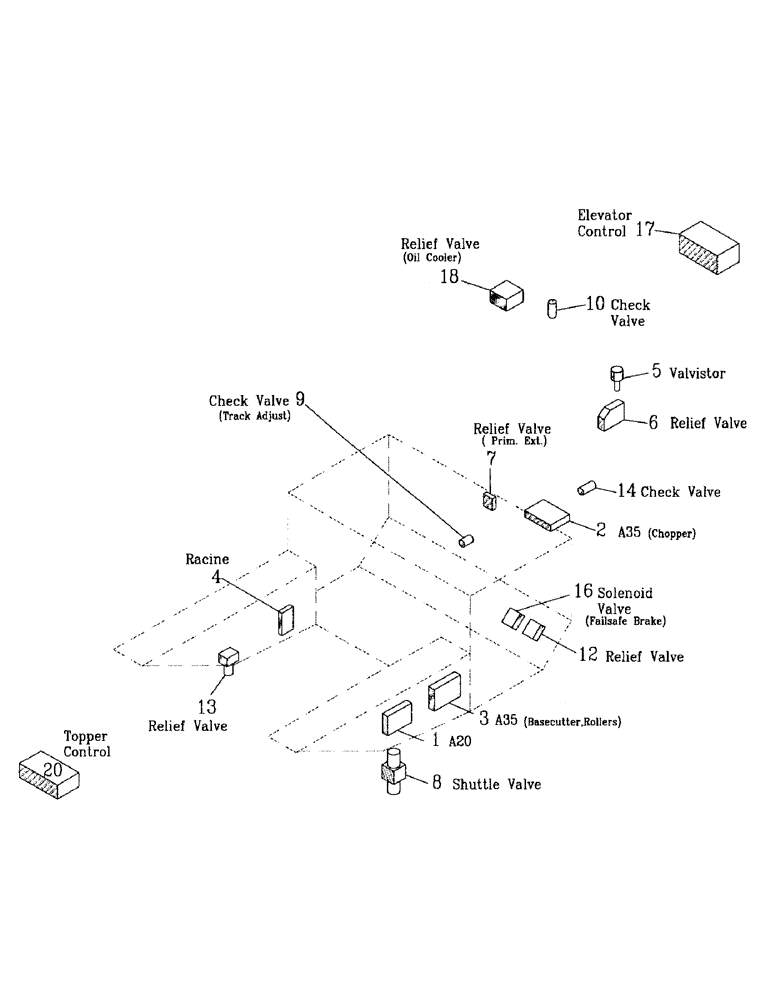

Запчасти Case IH 7000 (B00-30) - HYDRAULIC VALVES, FLORIDA OPTION Hydraulic Components & Circuits

1

HYDRAULIC VALVE (Refer Page B04-05-A)

1шт.

2

HYDRAULIC VALVE (Refer Page B04-10-A)

1шт.

3

HYDRAULIC VALVE (Refer Page FB04-15A)

1шт.

4

HYDRAULIC VALVE (Refer Page FB04-20A)

1шт.

5

HYDRAULIC SOLENOID VALVE (Refer Page B04-25-A)

1шт.

6

HYDRAULIC RELIEF VALVE (Refer Page B04-30-A)

1шт.

7

HYDRAULIC SOLENOID VALVE (Refer Page B04-32-A)

1шт.

8

HYDRAULIC SHUTTLE VALVE (Refer Page B04-40-A)

1шт.

9

HYDRAULIC CHECK VALVE (Refer Page B04-45-A)

1шт.

10

HYDRAULIC CHECK VALVE (Refer Page B04-50-A)

1шт.

12

HYDRAULIC RELIEF VALVE (Refer Page B04-60-A)

1шт.

13

HYDRAULIC RELIEF VALVE (Refer Page B04-65-A)

1шт.

14

HYDRAULIC CHECK VALVE (Refer Page B04-70-A)

1шт.

16

HYDRAULIC SOLENOID VALVE (Refer Page B04-80-A)

1шт.

17

HYDRAULIC SOLENOID RELIEF VALVE (Refer Page B04-85-A)

1шт.

18

HYDRAULIC SOLENOID RELIEF VALVE (Refer Page B04-90-A)

1шт.

20

HYDRAULIC SOLENOID RELIEF VALVE (Refer Page FB04-97A)

1шт.
