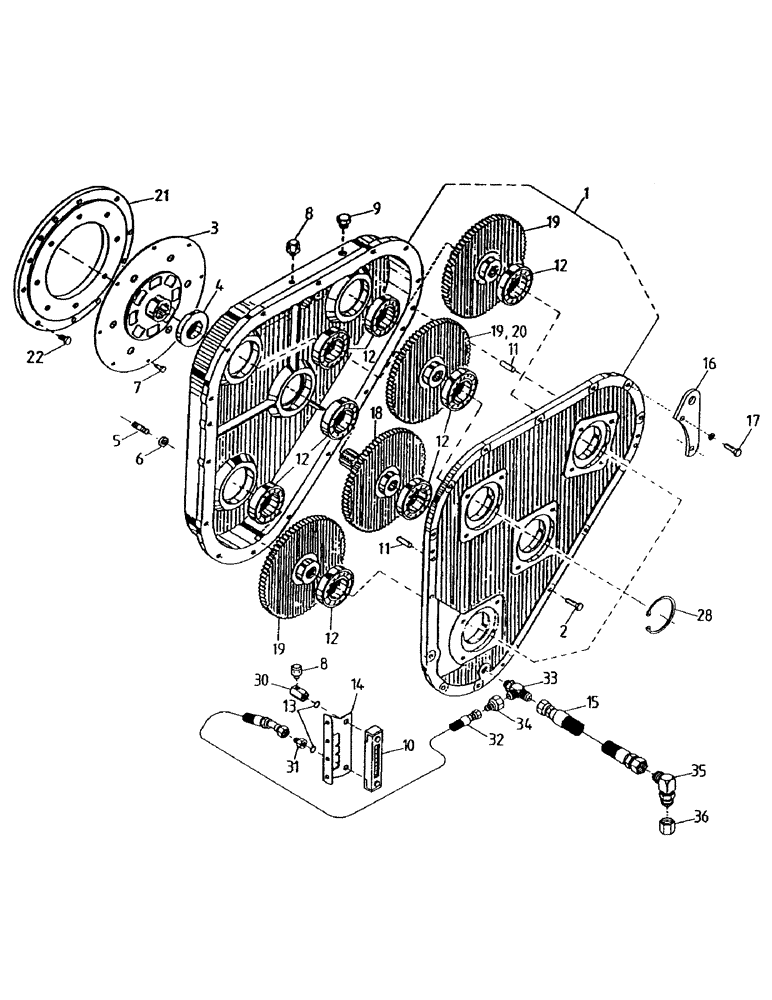

Запчасти Case IH 7000 (C05-00) - GEARBOX, FIXED/VARIABLE EXTRACTOR, FLORIDA OPTION Engine & Engine Attachments

1

87237513

GEARBOX

and COVER

1шт.

2

00601506

BOLT

12шт.

3

00180520

DRIVE PLATE

PLATE

1шт.

4

00100791

OIL SEAL

SEAL

1шт.

5

87241858

STUD

12шт.

6

00605796

NUT

12шт.

7

FC110020

SCREW,M10 x 1.5 x 20mm

8шт.

8

00407924

FILLER CAP

BREATHER

2шт.

9

00400106

HYD CONNECTOR

PLUG

1шт.

10

00101646

LEVEL GAUGE CONTROL

GAUGE

1шт.

11

00605682

PIN

DOWEL

2шт.

12

00140224

BALL BEARING

BEARING

8шт.

13

00100010

O-RING

2шт.

14

87249634

MOUNTING PARTS

MOUNT

1шт.

15

87236445

HOSE

1шт.

16

87236442

LIFTING EYE

2шт.

17

00608166

BOLT

4шт.

18

87232771

DRIVING GEAR

GEAR (76 Tooth)

1шт.

19

87232772

DRIVEN GEAR

GEAR (65 Tooth)

1шт.

20

87230587

DRIVEN GEAR

GEAR (65 Tooth) (Variable Speed)

1шт.

21

87230177

ADAPTER

ADAPTOR

1шт.

22

00601516

BOLT

12шт.

23

87241870

GEARBOX ASSY

GEARBOX ASSEMBLY (Fixed Speed)

1шт.

24

87241867

DRIVE ASSEMBLY

1шт.

25

87241869

GEARBOX ASSY

GEARBOX and DRIVE ASSEMBLY (Fixed Speed)

1шт.

26

87238234

GEARBOX ASSY

GEARBOX ASSEMBLY (Variable Speed)

1шт.

27

87241866

GEARBOX and DRIVE ASSEMBLY (Variable Speed)

1шт.

28

CI110000

CIRCLIP

4шт.

30

87243672

ADAPTER,M12 x 1.75

ADAPTOR

1шт.

31

87242103

ADAPTER,9/16" - 18

ADAPTOR

1шт.

32

87225598

HOSE ASSY.,6.35mm ID x 780mm L, SAE 100R17

HOSE

1шт.

33

00403549

TEE

1шт.

34

00404798

HYD CONNECTOR

ADAPTOR

1шт.

35

00409554

HYD CONNECTOR

ELBOW

1шт.

36

00400144

HYD CONNECTOR

CAP

1шт.
