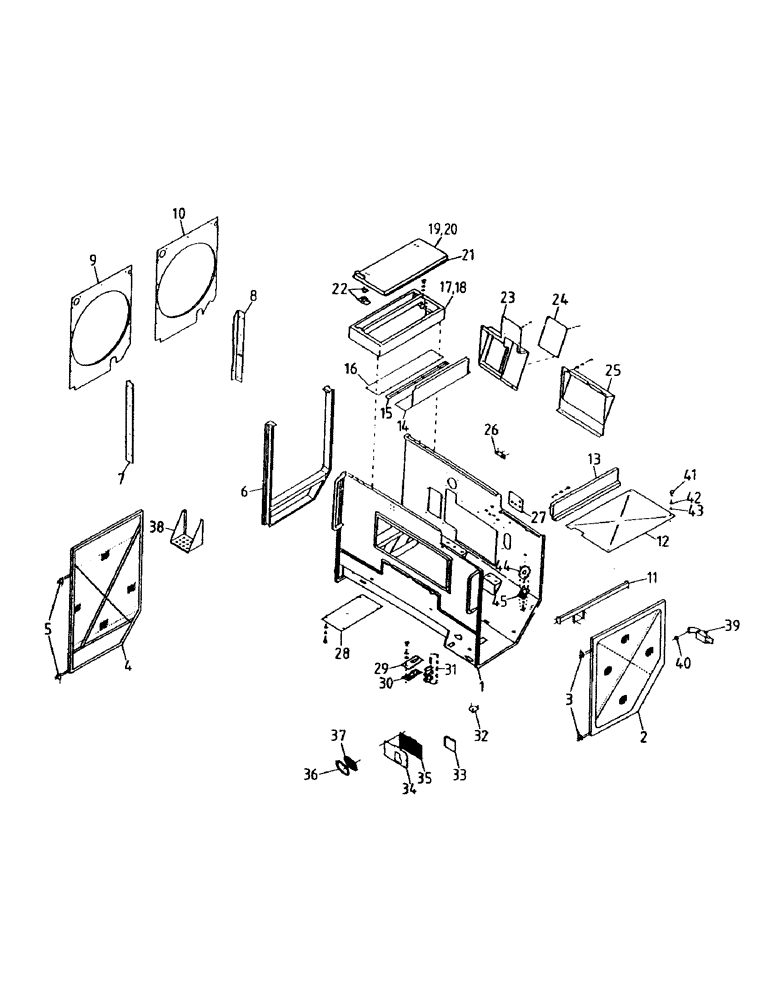

Запчасти Case IH 7000 (C03-00) - ENGINE COMPARTMENT, FLORIDA OPTION Engine & Engine Attachments

1

87249835

ENGINE COMPARTMENT

1шт.

2

87246485

DOOR ASSY.

DOOR

1шт.

2

00180492

SEAL

PINCHWELD (With Rubber)

1шт.

3

87229919

LUG

HINGE

2шт.

4

87246589

DOOR ASSY.

DOOR

1шт.

4

00180492

SEAL

PINCHWELD (With Rubber)

1шт.

5

86983900

HINGE

2шт.

6

87246519

EXTENSION

(M11-250)

1шт.

7

87247294

SUPPORT

1шт.

8

87232824

GUARD

SUPPORT

1шт.

9

87247292

SHROUD ASSY.

SHROUD (M11-330)

1шт.

10

87249600

SHROUD (M11-250)

1шт.

11

87249841

SUPPORT

1шт.

12

87234332

PLATE

COVER

1шт.

13

87242289

BRACKET

MEMBER

1шт.

14

87242090

PLATE

COVER

1шт.

15

87242089

HINGE

1шт.

16

87245623

PLATE

1шт.

17

87238026

MOUNTING PARTS

COVER (M11-250)

1шт.

18

87233183

COVER ASSY

COVER (M11-330)

1шт.

19

87238040

COVER ASSY

COVER (M11-250)

1шт.

20

86958000

COVER

(M11-330)

1шт.

21

86958200

HINGE

1шт.

22

00607939

SPRING

CATCH

2шт.

23

87236098

MOUNTING PARTS

COVER

1шт.

24

87236113

PLATE

COVER

1шт.

25

87231847

COVER ASSY

COVER

1шт.

26

87250256

CLAMP BRACKET

BRACKET

1шт.

27

87249631

PLATE

1шт.

28

87230221

COVER ASSY

COVER

1шт.

29

87247280

RETAINER (LH)

1шт.

29

87247279

RETAINER (RH)

1шт.

30

87247986

SEAL (LH)

1шт.

30

87247281

SEAL (RH)

1шт.

31

00405071

CLAMP

4шт.

32

87246619

PLATE

COVER (U/S)

1шт.

33

87246617

COVER

1шт.

34

87248878

COVER

1шт.

35

87248877

RUBBER

SEAL

1шт.

36

87247976

COVER

1шт.

37

87247978

SEAL

RUBBER

1шт.

38

87247201

STEP

1шт.

39

00181902

LATCH

2шт.

40

00181881

BUTTON

2шт.

41

FM110020

BOLT

1шт.

42

WB100000

WASHER

1шт.

43

WA100000

WASHER

1шт.

44

87213656

COVER PLATE

COVER

1шт.

45

87219224

PLATE

RUBBER

1шт.
