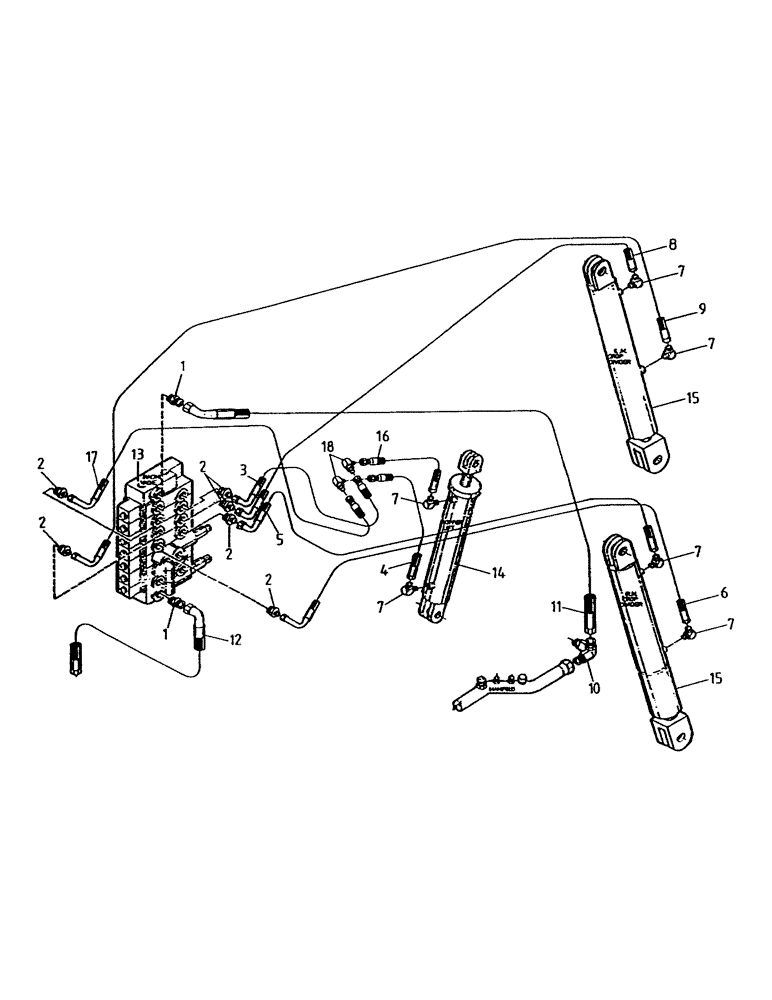

Запчасти Case IH 7000 (B06-25) - HYDRAULIC CIRCUIT, TOPPER AND CROPDIVIDER 7700 Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

NIPPLE

2шт.

2

00400074

HYD CONNECTOR

NIPPLE

6шт.

3

87219801

HOSE

HYDRAULIC HOSE

1шт.

4

87229622

HOSE ASSY.

HOSE

1шт.

5

87222416

HYDRAULIC HOSE

1шт.

6

87216961

HOSE

1шт.

7

00400189

HYD CONNECTOR

ELBOW

6шт.

8

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

HOSE

1шт.

9

87038600

HOSE,6.35mm ID x 2420mm L, SAE 100R17

1шт.

10

86310816

HYD CONNECTOR

ADAPTOR

1шт.

11

86300987

HOSE ASSY.

HOSE

1шт.

12

83129700

HOSE

1шт.

13

HYDRAULIC RACINE VALVE (Refer to Page B04-20-A)

1шт.

14

HYDRAULIC CYLINDER (Refer to Page B01-00-A)

1шт.

15

HYDRAULIC CYLINDER (Refer to Page B01-05-A)

1шт.

16

87235847

HOSE,6.35mm ID x 920mm L, SAE 100R17

1шт.

17

82745900

HOSE ASSY.,6.35mm ID x 1440mm L, SAE 100R17

HOSE

1шт.

18

00404781

HYD CONNECTOR

ELBOW

2шт.
