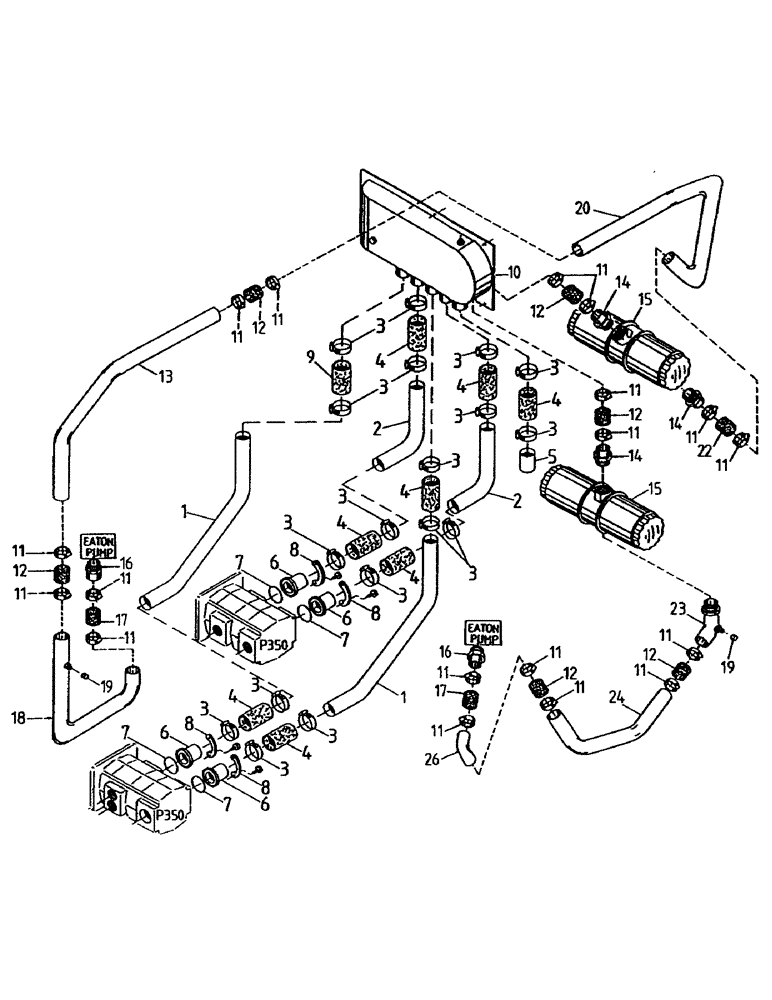

Запчасти Case IH 7000 (B05-30) - HYDRAULIC SUCTION LINES, 108 PRIMARY VARIABLE EXTRACTOR Hydraulic Components & Circuits

1

87203500

TUBE,50.80 mm OD

2шт.

2

86957900

TUBE

2шт.

3

00180541

HOSE CLAMP

CLAMP

18шт.

4

82204300

HOSE,50.8mm ID x 102mm L

8шт.

5

87234650

PLUG

1шт.

6

87219650

HYD CONNECTOR

ADAPTOR

4шт.

7

00100106

O-RING

4шт.

8

00400267

SPECIAL CLAMP

CLAMP

4шт.

8

00604534

SCREW

16шт.

9

86315149

HOSE,140.00 mm

HYDRAULIC HOSE 140.00 mm

1шт.

10

87234729

TANK

1шт.

11

00181182

HOSE CLAMP

CLAMP

18шт.

12

86312272

HOSE,38.10 mm ID x 110.00 mm

38.10 mm ID x 110.00 mm

6шт.

13

87235282

TUBE

1шт.

14

00402123

HYD CONNECTOR

HOSETAIL

3шт.

15

SUCTION FILTER (Refer to Page B08-00-A)

1шт.

16

00408396

ADAPTER

HOSETAIL

2шт.

17

82217600

HOSE,38.10 mm ID x 80.00 mm

2шт.

18

87232817

TUBE

1шт.

19

00400143

HYD CONNECTOR

CAP NUT

2шт.

20

87235281

TUBE

1шт.

21

87222587

HOSE,38.10 mm ID x 130.00 mm

HYDRAULIC HOSE 38.10 mm ID x 130.00 mm

1шт.

22

86695400

HYDRAULIC HOSE,1.50" ID

HOSE

1шт.

23

87232815

ADAPTER

ADAPTOR

1шт.

24

87233637

TUBE

1шт.

26

87233997

TUBE,38 mm OD

1шт.
