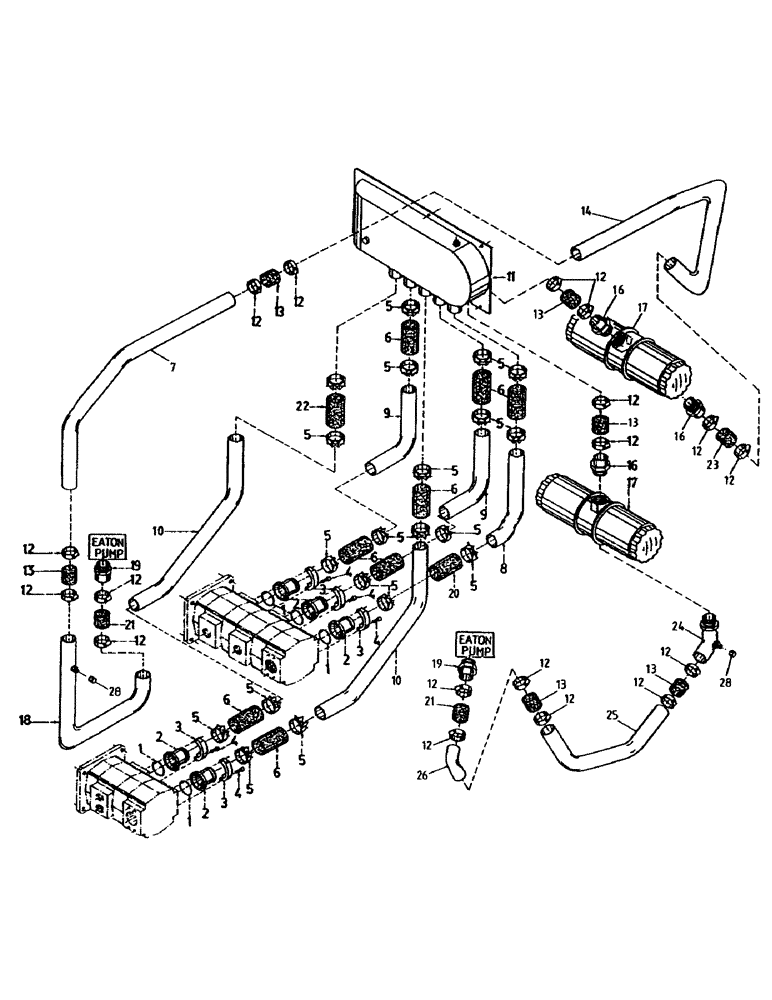

Запчасти Case IH 7000 (B05-20) - HYDRAULIC SUCTION LINES, 108 PRIMARY SECONDARY FIXED EXTRACTOR Hydraulic Components & Circuits

1

00100106

O-RING

5шт.

2

87219650

HYD CONNECTOR

ADAPTOR

5шт.

3

00400267

SPECIAL CLAMP

CLAMP

5шт.

4

00604534

SCREW

20шт.

5

00180541

HOSE CLAMP

CLAMP

20шт.

6

82204300

HOSE,50.8mm ID x 102mm L

8шт.

7

87235282

TUBE

1шт.

8

87203600

TUBE

1шт.

9

86957900

TUBE

2шт.

10

87203500

TUBE,50.80 mm OD

2шт.

11

87234729

TANK

1шт.

12

00181182

HOSE CLAMP

CLAMP

18шт.

13

86312272

HOSE,38.10 mm ID x 110.00 mm

38.10 mm ID x 110.00 mm

6шт.

14

87235281

TUBE

1шт.

16

00402123

HYD CONNECTOR

HOSETAIL

3шт.

17

SUCTION FILTER (Refer to Page B08-00-A)

1шт.

18

87220610

FRAME,38.10 mm OD

TUBE

1шт.

19

00408396

ADAPTER

HOSETAIL

2шт.

20

87219083

MANIFOLD

HOSE

1шт.

21

82217600

HOSE,38.10 mm ID x 80.00 mm

2шт.

22

86315149

HOSE,140.00 mm

HYDRAULIC HOSE 140.00 mm

1шт.

23

86695400

HYDRAULIC HOSE,1.50" ID

HOSE

1шт.

24

87232815

ADAPTER

ADAPTOR

1шт.

25

87233637

TUBE

1шт.

26

87233997

TUBE,38 mm OD

1шт.

28

00400143

HYD CONNECTOR

CAP NUT

2шт.
