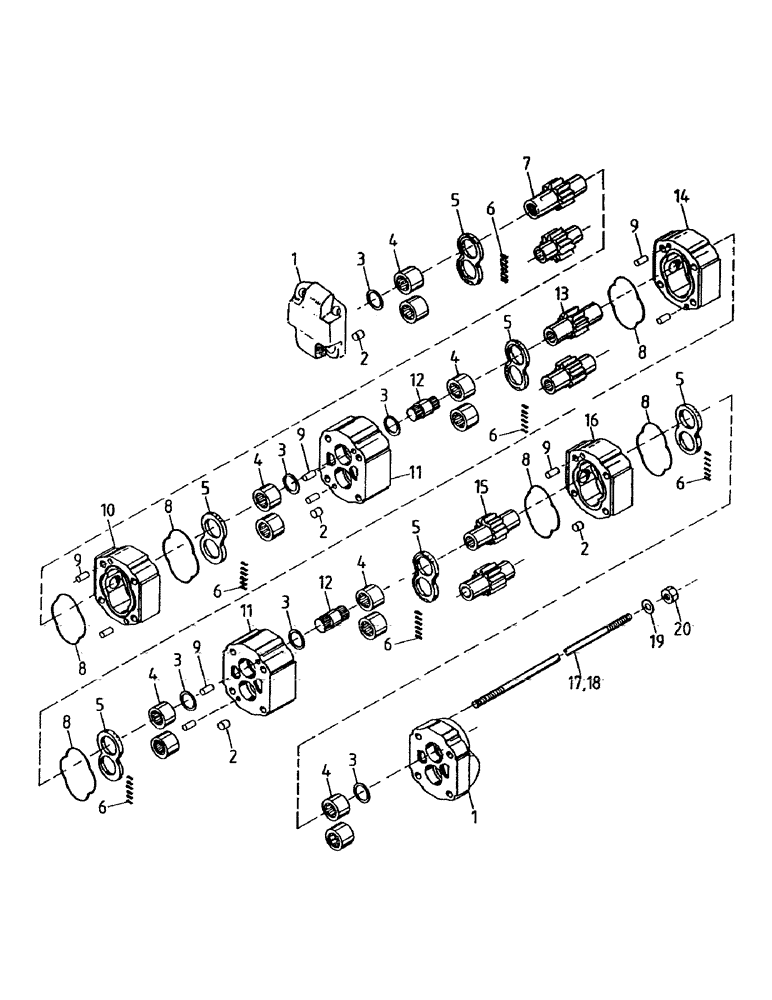

Запчасти Case IH 7000 (B03-80) - FLOW DIVIDER, CHOPPER Hydraulic Components & Circuits

1

00408584

HOUSING

END COVER

2шт.

2

00408685

VALVE, CHECK

CHECK VALVE

4шт.

3

00400576

SEAL

6шт.

4

00400577

ROLLER

BEARING

12шт.

5

00400589

PLATE

THRUST PLATE

6шт.

6

00409503

ASSEMBLY

SEAL STRIP

6шт.

7

00400610

GEAR

SET

1шт.

8

00400590

GASKET

8шт.

9

00404710

DOWEL

PIN

12шт.

10

00407863

TRANSMISSION HOUSING

HOUSING

1шт.

11

00405876

CARRIER

2шт.

12

00400598

SHAFT

2шт.

13

00402635

GEAR SET

1шт.

14

00409502

HOUSING

1шт.

15

00400604

GEAR

SET

1шт.

16

00405466

HOUSING

1шт.

17

00400653

STUD

(Short)

2шт.

18

00404843

STUD

(Long)

2шт.

19

00400531

WASHER

8шт.

20

00400532

NUT

8шт.

21

00409438

SEAL KIT

1шт.

22

00409303

DIVIDER

ASSEMBLY

1шт.
