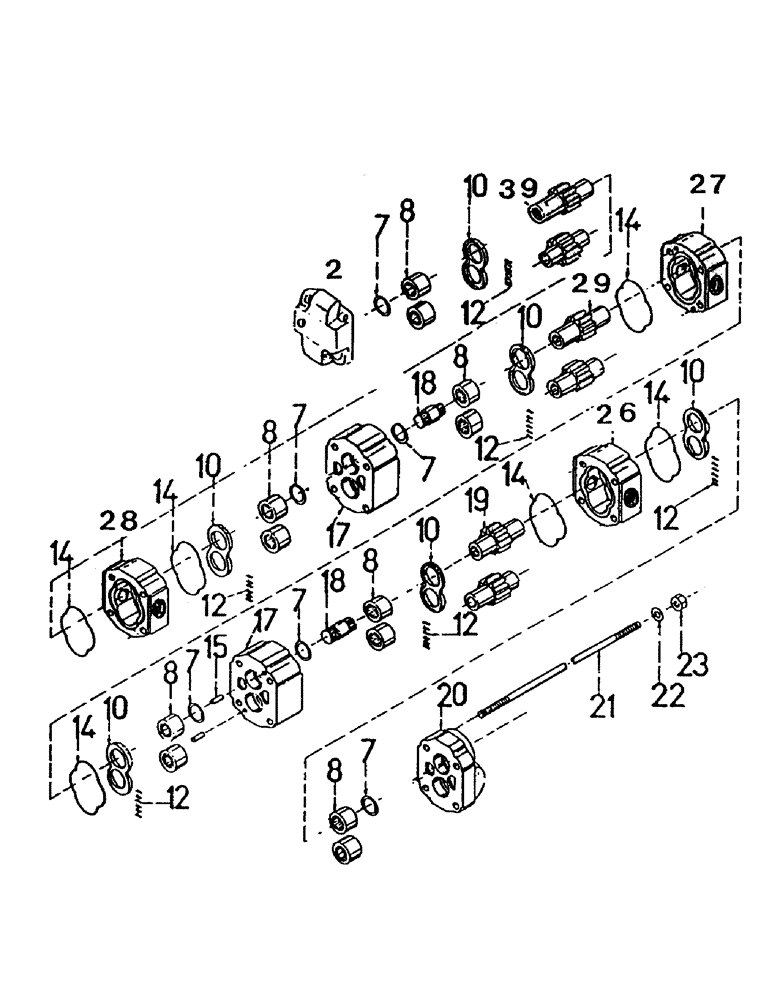

Запчасти Case IH 7000 (B03-75) - FLOW DIVIDER, PUMP BOX Hydraulic Components & Circuits

2

00407625

COVER

END COVER

1шт.

7

00400507

SEAL

6шт.

8

00400508

BEARING

ROLLER BEARING

12шт.

10

00400516

RETAINER

THRUST PLATE

6шт.

12

00400517

SEAL

STRIP

3шт.

14

00407628

ASSEMBLY

GASKET

8шт.

15

00404710

DOWEL

PIN

12шт.

17

00407626

CARRIER

2шт.

18

00400527

SHAFT

2шт.

19

00400536

GEAR

SET

1шт.

20

00400514

COVER ASSY

END COVER

1шт.

21

00400668

STUD

(Short)

2шт.

21

00400686

STUD

(Long)

2шт.

22

00400531

WASHER

8шт.

23

00400532

NUT

12шт.

26

00400535

HOUSING

1шт.

27

00407703

HOUSING

1шт.

28

00407627

TRANSMISSION HOUSING

HOUSING

1шт.

29

00400519

GEAR

SET

1шт.

39

00400551

GEAR

SET

1шт.

40

00407795

SEAL KIT

1шт.

41

00407237

FLOW DIVIDER

ASSEMBLY

1шт.
