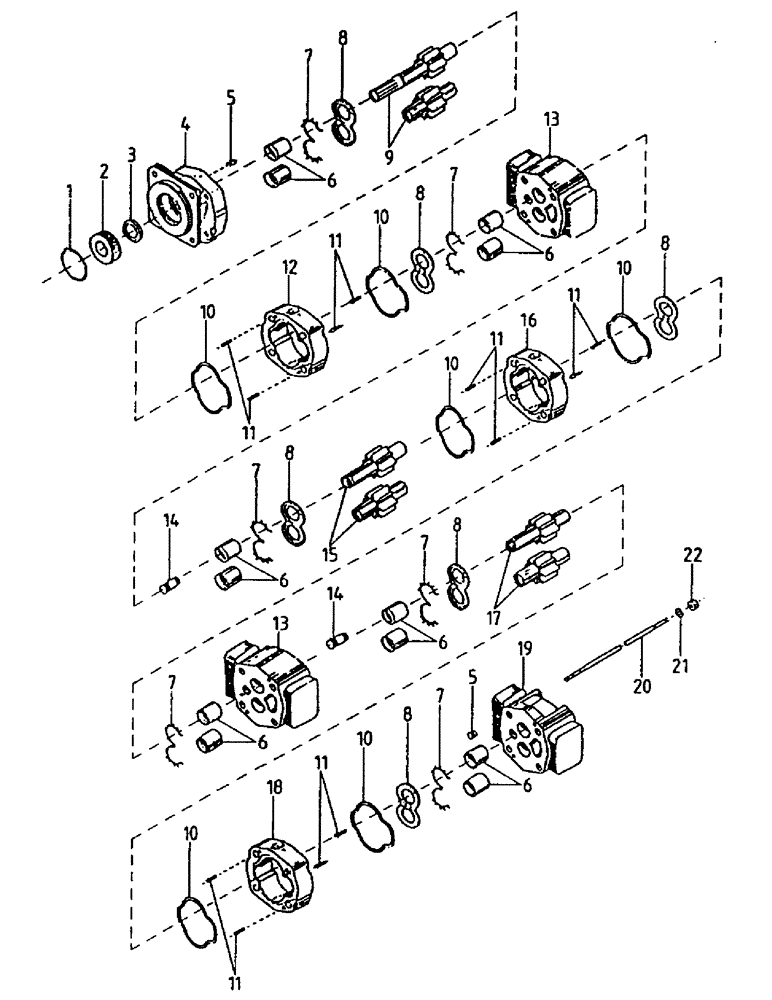

Запчасти Case IH 7000 (B03-25) - HYDRAULIC PUMP, 108 TWO BLADE CHOPPER AND PRIMARY FIXED EXTRACTOR Hydraulic Components & Circuits

1

00400581

RING

SNAP RING

1шт.

2

00144114

BALL BEARING

BEARING

1шт.

3

00400578

SEAL

1шт.

4

00404704

SHAFT

END COVER

1шт.

5

00400512

NIPPLE, LUBE

PLUG

1шт.

6

00404705

BUSHING

BUSH

12шт.

7

00404706

SEAL

6шт.

8

00404707

PLATE

THRUST PLATE

6шт.

9

00404708

GEAR

SET

1шт.

10

00404709

GASKET

6шт.

11

00404710

DOWEL

PIN

12шт.

12

00404711

TRANSMISSION HOUSING

HOUSING

1шт.

13

00408699

CARRIER

2шт.

14

00404713

SHAFT

2шт.

15

00404841

GEAR

SET

1шт.

16

00404842

TRANSMISSION HOUSING

HOUSING

1шт.

17

00407244

GEAR SET

1шт.

18

00407245

TRANSMISSION HOUSING

HOUSING

1шт.

19

00408698

COVER

END COVER

1шт.

20

00400650

ASSEMBLY

STUD

4шт.

21

00400531

WASHER

4шт.

22

00400532

NUT

4шт.

23

00407799

SEAL KIT

1шт.

24

00409382

PUMP

ASSEMBLY

1шт.
