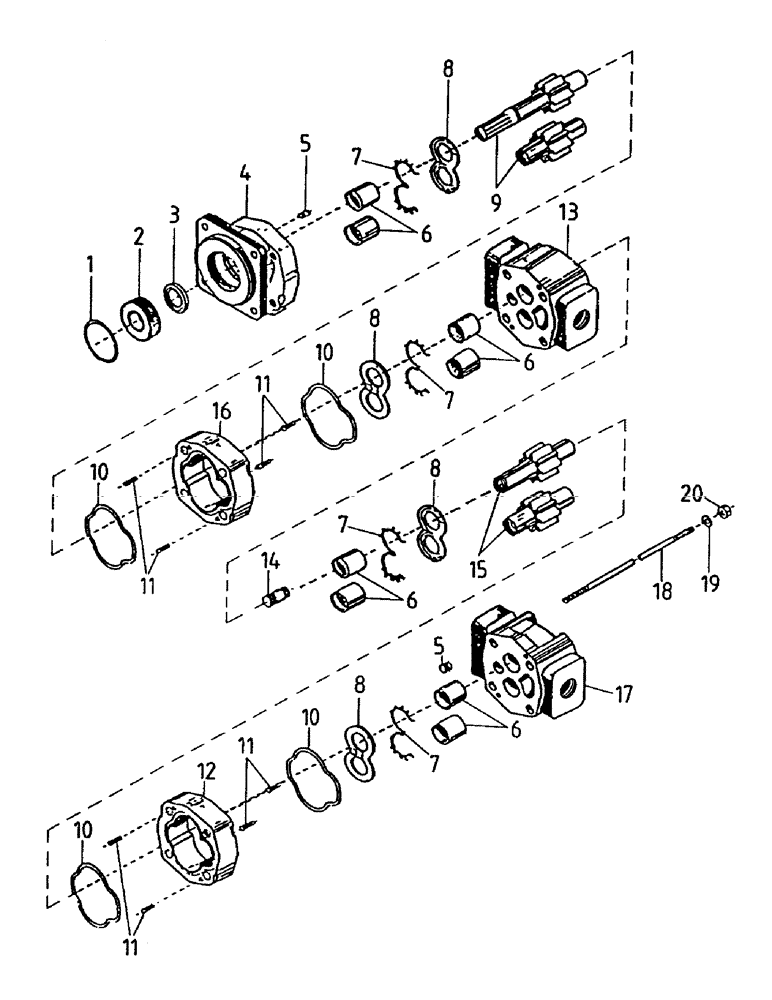

Запчасти Case IH 7000 (B03-20) - HYDRAULIC PUMP, BASECUTTER Hydraulic Components & Circuits

1

00400581

RING

SNAP RING

1шт.

2

00144114

BALL BEARING

BEARING

1шт.

3

00400578

SEAL

1шт.

4

00404704

SHAFT

END COVER

1шт.

5

00400512

NIPPLE, LUBE

PLUG

1шт.

6

00404705

BUSHING

BUSH

8шт.

7

00404706

SEAL

4шт.

8

00404707

PLATE

THRUST PLATE

4шт.

9

00404708

GEAR

SET

1шт.

10

00404709

GASKET

4шт.

11

00404710

DOWEL

DOWLE PIN

8шт.

12

00404842

TRANSMISSION HOUSING

HOUSING

1шт.

13

00407629

CARRIER

1шт.

14

00404713

SHAFT

1шт.

15

00404841

GEAR

SET

1шт.

16

00404711

TRANSMISSION HOUSING

HOUSING

1шт.

17

00408432

COVER

END COVER

1шт.

18

00400688

STUD

4шт.

19

00400531

WASHER

4шт.

20

00400532

NUT

4шт.

25

00407797

SEAL KIT

1шт.

26

00407238

HYDRAULIC PUMP

ASSEMBLY

1шт.
