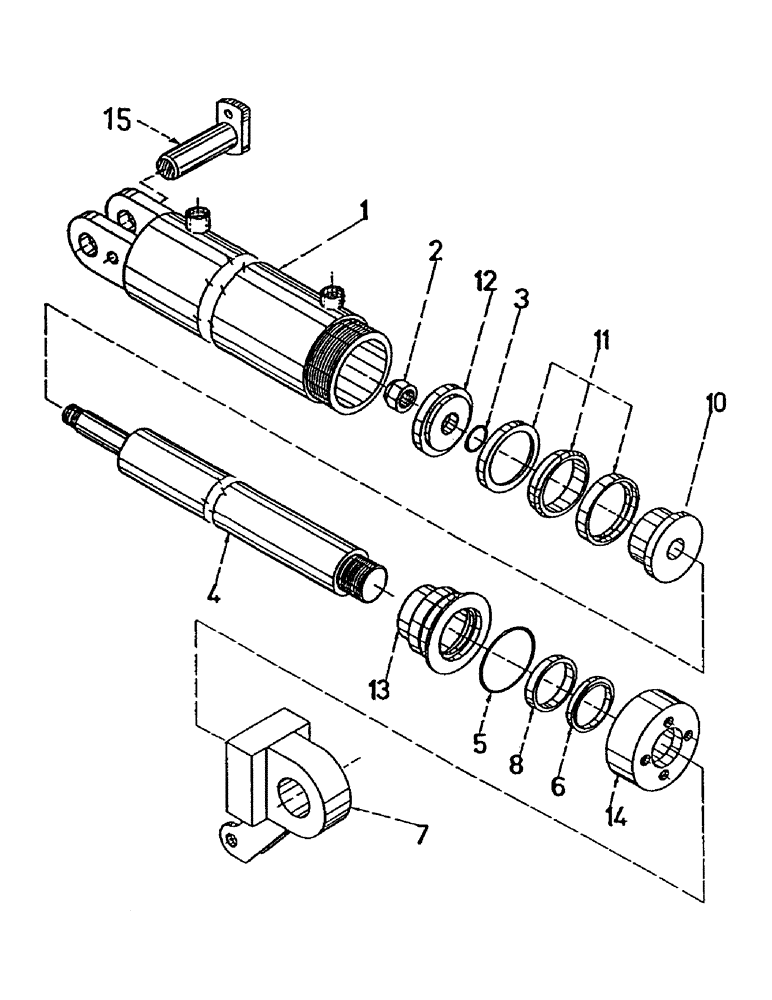

Запчасти Case IH 7000 (B01-20) - HYDRAULIC CYLINDER, BASECUTTER LIFT 7700 Hydraulic Components & Circuits

1

87125600

CYLINDER,79mm Bore Dia

BARREL

1шт.

2

00607933

LOCK NUT

NUT

1шт.

3

00100019

O-RING

1шт.

4

87214117

HYDRAULIC CYLINDER

ROD

1шт.

5

00100110

O-RING

1шт.

6

00107722

WIPER

1шт.

7

87214180

CLEVIS

1шт.

8

00100711

WIPER SEAL

SEAL

1шт.

10

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

PISTON

1шт.

11

00100715

OIL SEAL

SEAL

1шт.

12

86787100

PISTON

1шт.

13

87214804

CYLINDER HEAD

PISTON

1шт.

14

87045700

SPECIAL NUT

NUT

1шт.

15

86788000

PIN,25.4mm OD x 75mm L

(LH)

1шт.

15

87217160

PIN

(RH)

1шт.

16

87213917

SEAL KIT

1шт.

17

87214194

CYLINDER,Double Acting, 44.45mm Rod, 265mm Stroke

ASSEMBLY (Excluding Pin)

1шт.
