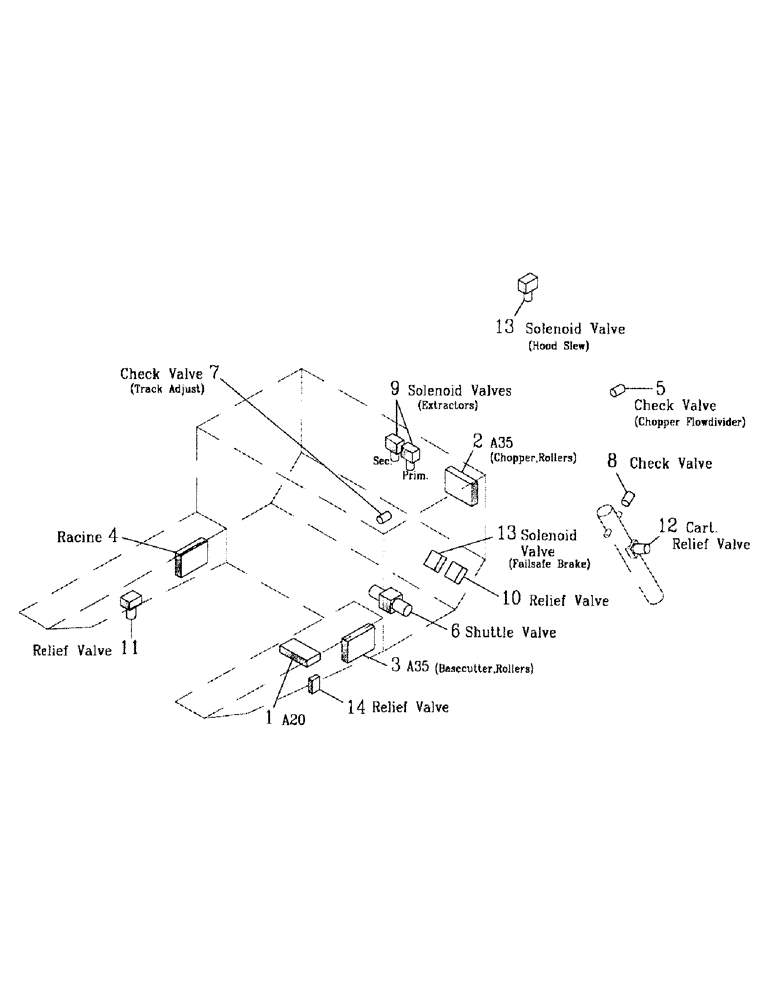

Запчасти Case IH 7000 (B00-30) - HYDRAULIC VALVES Hydraulic Components & Circuits

1

HYDRAULIC VALVE (Refer to Page B04-00-A)

1шт.

2

HYDRAULIC VALVE (Refer to Page B04-10-A)

1шт.

3

HYDRAULIC VALVE (Refer to Page B04-15-A)

1шт.

4

HYDRAULIC RACINE VALVE (Refer to Page B04-20-A)

1шт.

5

HYDRAULIC CHECK VALVE (Refer to Page FB04-25A)

1шт.

6

HYDRAULIC SHUTTEL VALVE (Refer to Page B04-40-A)

1шт.

7

HYDRAULIC CHECK VALVE (Refer to Page B04-45-A)

1шт.

8

HYDRAULIC CHECK VALVE (Refer to Page B04-50-A)

1шт.

9

HYDRAULIC SOLENOID RELIEF VALVE (Refer to Page B04-57-A)

1шт.

10

HYDRAULIC RELIEF VALVE (Refer to Page B04-60-A)

1шт.

11

HYDRAULIC RELIEF VALVE (Refer to Page B04-65-A)

1шт.

12

HYDRAULIC RELIEF VALVE (Refer to Page B04-70-A)

1шт.

13

HYDRAULIC SOLENOID VALVE (Refer to Page B04-80-A)

1шт.

14

HYDRAULIC DUMP RELIEF VALVE (Refer to Page B04-90-A)

1шт.
