(C05-00) - GEARBOX, 108 FIXED/VARIABLE EXTRACTOR

Запчасти Case IH 7000 (C05-00) - GEARBOX, 108 FIXED/VARIABLE EXTRACTOR Engine & Engine Attachments

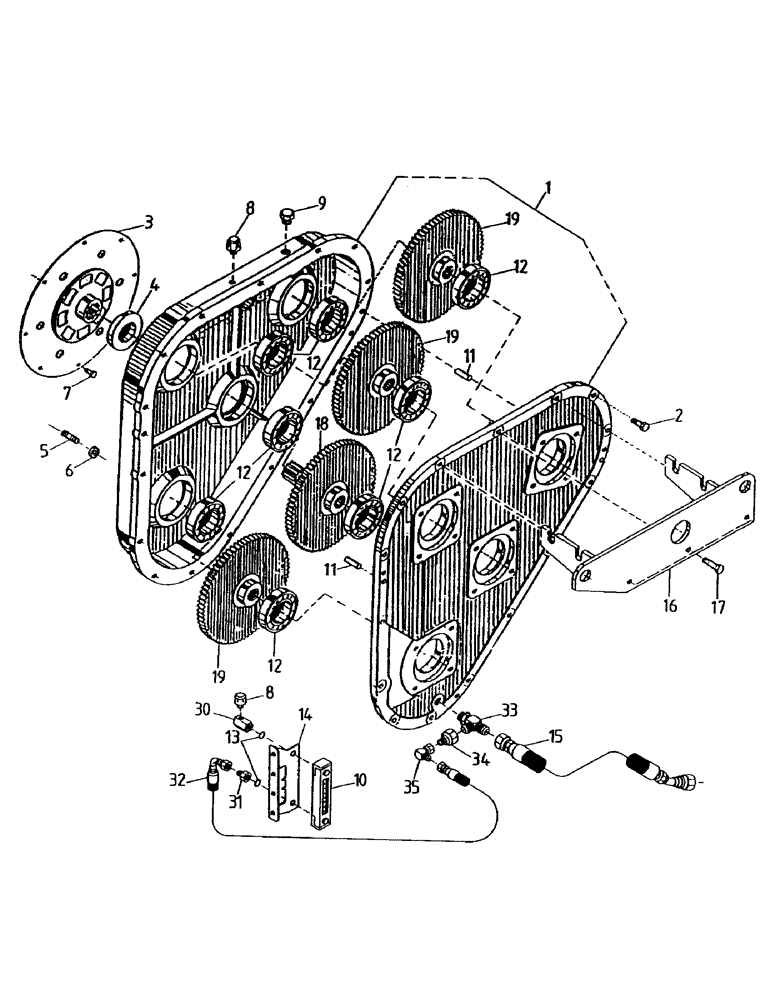

Схема запчастей Case IH 7000 - (C05-00) - GEARBOX, 108 FIXED/VARIABLE EXTRACTOR Engine & Engine Attachments
31
12
9
34
32
17
7
19
3
5
2
30
18
13
33
1
19
16
11
10
4
19
8
6
8
12
15
35
11
12
14
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87223197

KIT

GEARBOX AND COVER

1шт.

2

00601506

BOLT

12шт.

3

00180520

DRIVE PLATE

PLATE

1шт.

4

00100791

OIL SEAL

SEAL

1шт.

5

00607959

STUD

12шт.

6

NJ110000

NUT

12шт.

7

FM110020

BOLT

8шт.

8

00407924

FILLER CAP

BREATHER

1шт.

9

00400106

HYD CONNECTOR

PLUG

1шт.

10

00101646

LEVEL GAUGE CONTROL

GAUGE

1шт.

11

00605682

PIN

DOWEL

1шт.

12

00140224

BALL BEARING

BEARING

8шт.

13

00100010

O-RING

2шт.

14

87242102

MOUNTING PARTS

MOUNT

1шт.

15

86310712

HOSE ASSY.

HOSE

1шт.

16

87213543

LUG

LIFTING LUG

1шт.

17

00608166

BOLT

3шт.

18

87224643

GEAR

GEAR (71 Tooth)

1шт.

19

87129800

SPLINED COUPLING

GEAR (70 Tooth)

1шт.

20

87233254

DRIVEN GEAR

GEAR (70 Tooth) (Variable Speed)

1шт.

23

87224668

GEARBOX ASSY

GEARBOX ASSEMBLY (Fixed Speed)

1шт.

24

87224666

DRIVE ASSEMBLY

1шт.

25

87224667

GEAR

BOX AND DRIVE ASSEMBLY (Fixed Speed)

1шт.

26

87233497

GEARBOX ASSY

GEARBOX ASSEMBLY (Variable Speed)

1шт.

27

87233496

GEARBOX ASSY

GEARBOX AND DRIVE ASSEMBLY (Variable Speed)

1шт.

28

00181024

BREATHER

1шт.

29

00409235

HYD CONNECTOR

ELBOW

1шт.

30

87242104

ADAPTER

ADAPTOR

1шт.

31

87242103

ADAPTER,9/16" - 18

ADAPTOR

1шт.

32

81675700

HOSE

1шт.

33

00403549

TEE

1шт.

34

00404798

HYD CONNECTOR

ADAPTOR

1шт.

35

00402879

HYD CONNECTOR

ELBOW

1шт.
