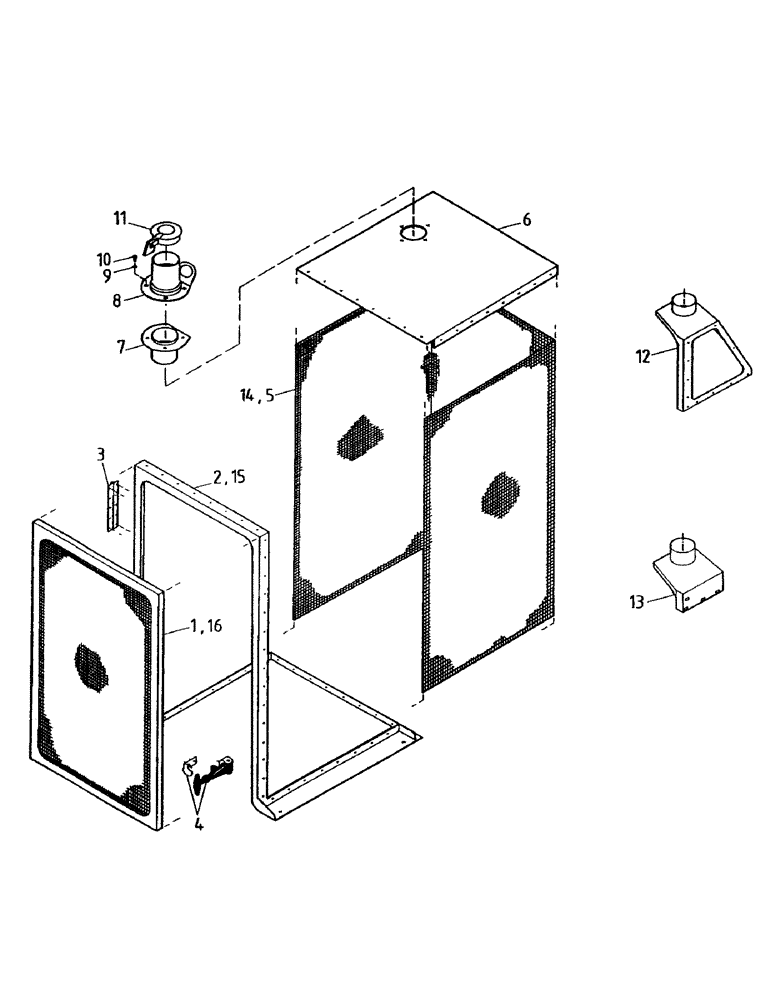

Запчасти Case IH 7000 (C03-20) - AIR INLET SCREEN Engine & Engine Attachments

1

87240662

DOOR ASSY.

DOOR (Standard)

1шт.

2

87242074

FRAME ASSY

BASE (Standard)

1шт.

3

87240652

HINGE

2шт.

4

00139549

LATCH

2шт.

5

87240651

SCREEN

MESH

1шт.

6

87242242

PLATE

TOP

1шт.

7

87242228

MOUNTING PARTS

MOUNT

1шт.

8

87237427

GUARD

EXTENSION

1шт.

9

WB100000

WASHER

4шт.

10

FM110016

BOLT

4шт.

11

00180875

CAP

1шт.

12

87242227

MOUNTING PARTS

MOUNT (Standard)

1шт.

13

87244396

MOUNT (Low Clearance)

1шт.

14

87244454

MESH (Low Clearance)

1шт.

15

87244455

BASE (Low Clearance)

1шт.

16

87244453

DOOR (Low Clearance)

1шт.
