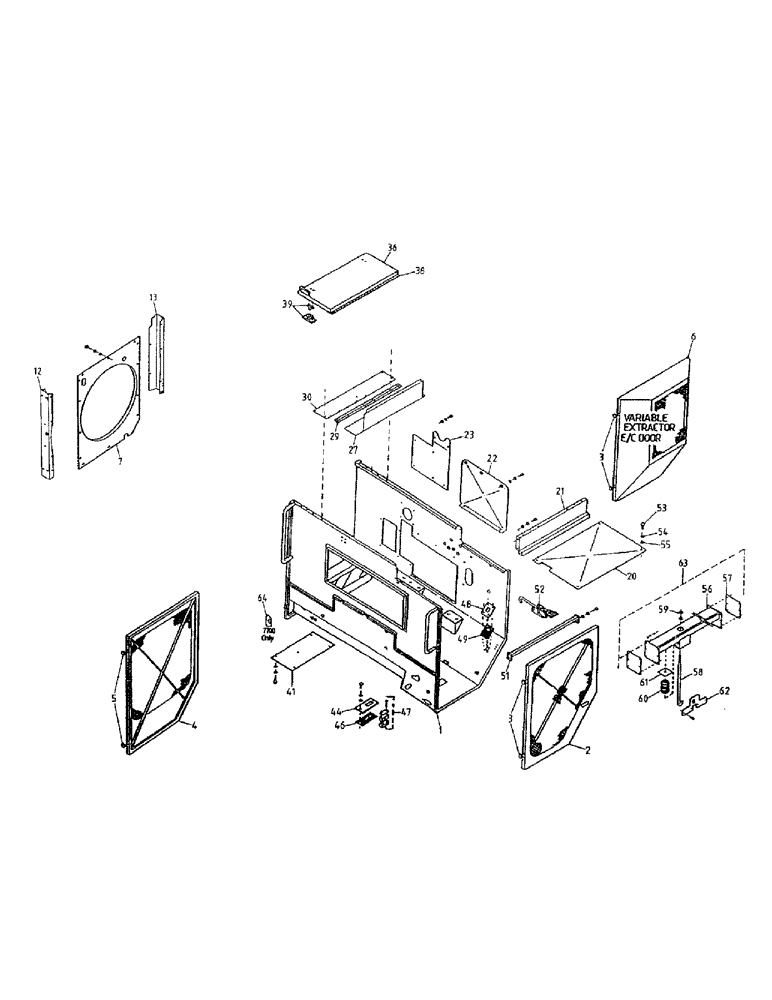

Запчасти Case IH 7000 (C03-00) - ENGINE COMPARTMENT Engine & Engine Attachments

1

87242781

ENGINE COMPARTMENT

1шт.

2

87236772

DOOR ASSY.

DOOR

1шт.

2

00180492

SEAL

PINCHWELD With Rubber

1шт.

3

87229919

LUG

HINGE

2шт.

4

87237549

DOOR ASSY.

DOOR

1шт.

4

00180492

SEAL

PINCHWELD With Rubber

1шт.

5

86983900

HINGE

2шт.

6

87231775

DOOR ASSY.

DOOR

1шт.

7

87232368

SHROUD ASSY.

SHROUD

1шт.

12

87232364

SUPPORT (FRONT)

1шт.

13

87232822

SUPPORT (REAR)

1шт.

20

87234332

PLATE

COVER

1шт.

21

87237880

PANEL

MEMBER

1шт.

22

87231867

COVER ASSY

COVER (REAR)

1шт.

23

87231850

COVER ASSY

COVER (REAR)

1шт.

27

87242186

COVER

1шт.

29

87242089

HINGE

1шт.

30

87242185

PLATE

1шт.

36

86958000

COVER

1шт.

38

86958200

HINGE

1шт.

39

00607939

SPRING

CATCH

2шт.

41

87230221

COVER ASSY

COVER (LOWER)

1шт.

44

87217339

RETAINER

SEAL RETAINER

2шт.

46

87217340

SEAL

2шт.

47

00405071

CLAMP

4шт.

48

87213656

COVER PLATE

1шт.

49

87219224

PLATE

RUBBER

1шт.

50

87237782

PLATE

(Fixed Speed)

1шт.

50

87237786

PLATE (Variable Speed)

1шт.

51

87232171

STIFFENER

1шт.

52

00608187

LATCH ASSY.

CATCH ASSEMBLY

2шт.

53

00601495

BOLT

1шт.

54

00605827

WASHER

1шт.

55

00605808

WASHER

1шт.

56

87234716

CROSSMEMBER

CROSS MEMBER

1шт.

57

87234719

PLATE

DOUBLER

2шт.

58

87235082

HOOK

1шт.

59

NA116000

NUT

2шт.

60

00180715

BUMPER

BUFFER

1шт.

61

87234722

WASHER

1шт.

62

87234721

PLATE

SUPPORT PLATE

1шт.

63

87235084

KIT

SUPPORT KIT

1шт.

64

87238872

PLATE (7700)

1шт.
