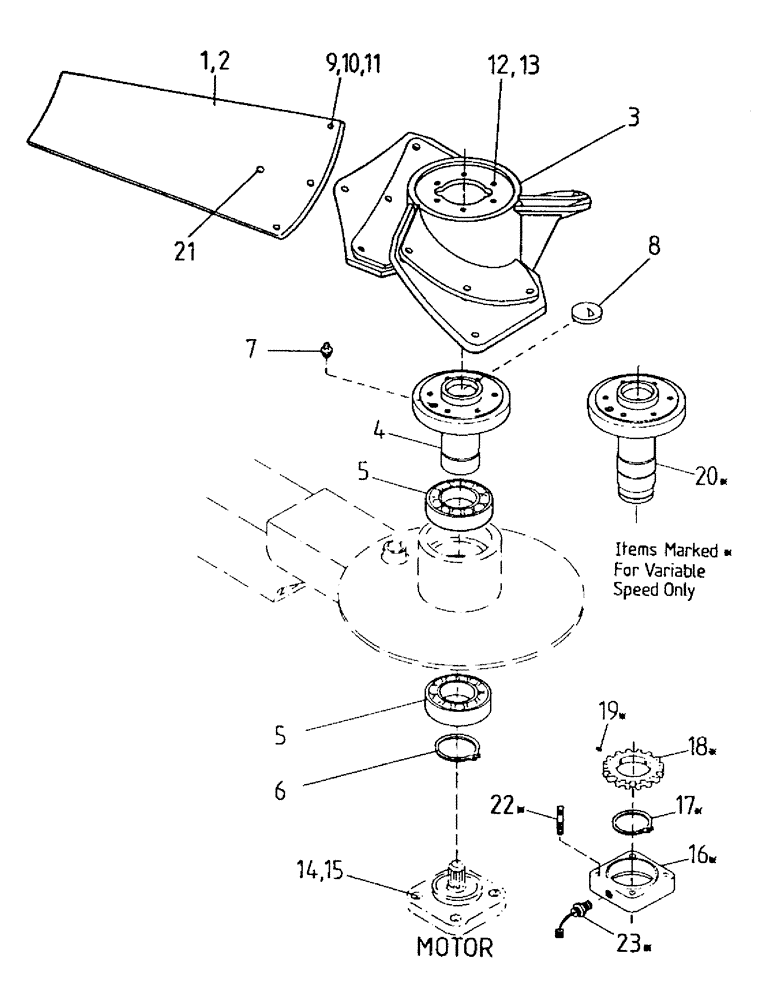

Запчасти Case IH 7000 (A03-00) - EXTRACTOR FANS, PRIMARY/SECONDARY Mainframe & Functioning Components

1

87231814

SET OF BLADES

BLADE SET (Primary Swinging Knife)

1шт.

1

87231808

BLADE

SET (Primary Rotary Chopper)

1шт.

2

87231816

ASSEMBLY

BLADE SET (Secondary Swinging Knife)

1шт.

2

87231810

SET OF BLADES

BLADE SET (Secondary Rotary Chopper)

1шт.

3

87240269

HUB

1шт.

4

86304126

SPLINED COUPLING

COUPLING (Fixed Speed)

1шт.

5

00140309

BALL BEARING

BEARING

2шт.

6

CE055000

CIRCLIP

1шт.

7

00153751

LUBE NIPPLE

GREASE NIPPLE

1шт.

8

00132819

PLUG

1шт.

9

00601584

BOLT

9шт.

10

00605829

WASHER

12шт.

11

00605803

NUT

12шт.

12

00601499

BOLT

6шт.

13

00605827

WASHER

6шт.

14

FA112040

BOLT

(Fixed Speed)

4шт.

15

00605829

WASHER

4шт.

16

87236400

ADAPTER

ADAPTOR (Variable Speed)

1шт.

17

CE050000

CIRCLIP

(Variable Speed)

1шт.

18

87236406

TACHOMETER

TACHO PICKUP (Variable Speed)

1шт.

19

FE106010

SCREW,M6 x 10mm

(Variable Speed)

2шт.

20

87236402

COUPLING

(Variable Speed)

1шт.

21

00601579

BOLT

3шт.

22

87236401

STUD

(Variable Speed)

4шт.

22

NA112000

NUT

(Variable Speed)

4шт.

23

87238304

SENDER UNIT

SENDER (Variable Speed)

1шт.
