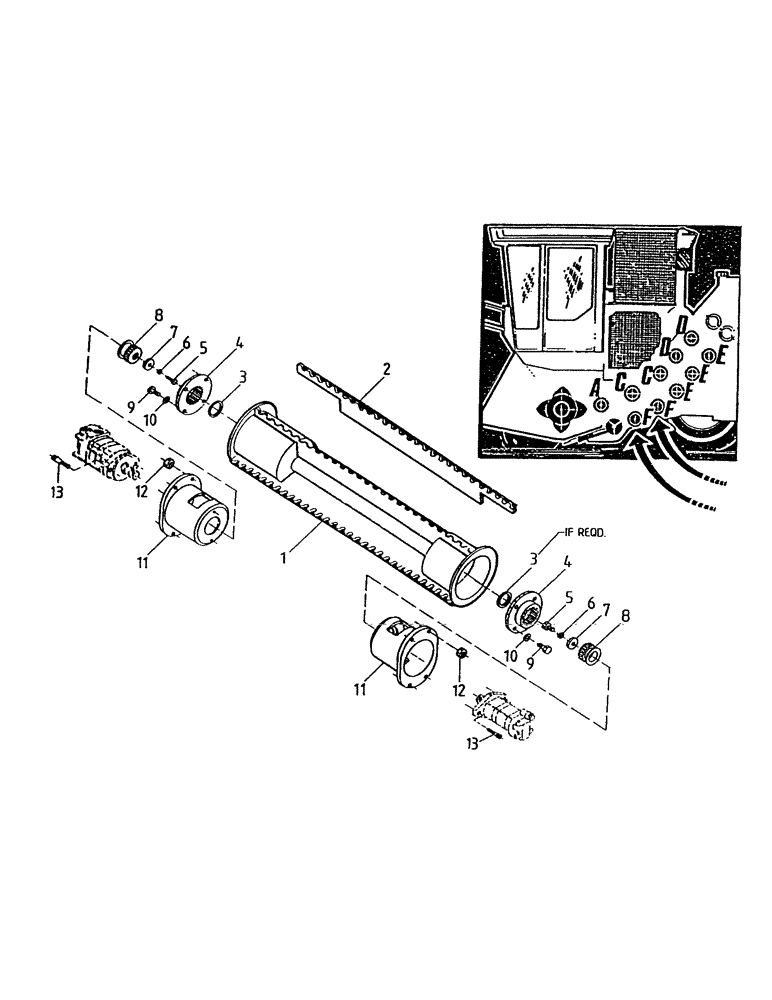

Запчасти Case IH 7000 (A02-65) - BOTTOM ROLLERS, LOWER F Mainframe & Functioning Components

1

86701601

ROLLER,220mm OD x 880mm L

2шт.

2

86927900

SLAT

6шт.

3

86701900

SPACER,52mm ID x 63mm OD x 5mm L

(If Required)

1шт.

4

86700800

ADAPTER

ADAPTOR

4шт.

5

00601499

BOLT

4шт.

6

00605827

WASHER

4шт.

7

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

4шт.

8

86701200

GEAR

PINION

4шт.

9

FM112025

BOLT

16шт.

10

WB120000

WASHER

16шт.

11

87217094

HOUSING

OVERALL LENGTH 151MM

4шт.

12

00605797

NUT

6шт.

13

00604538

SCREW

8шт.
