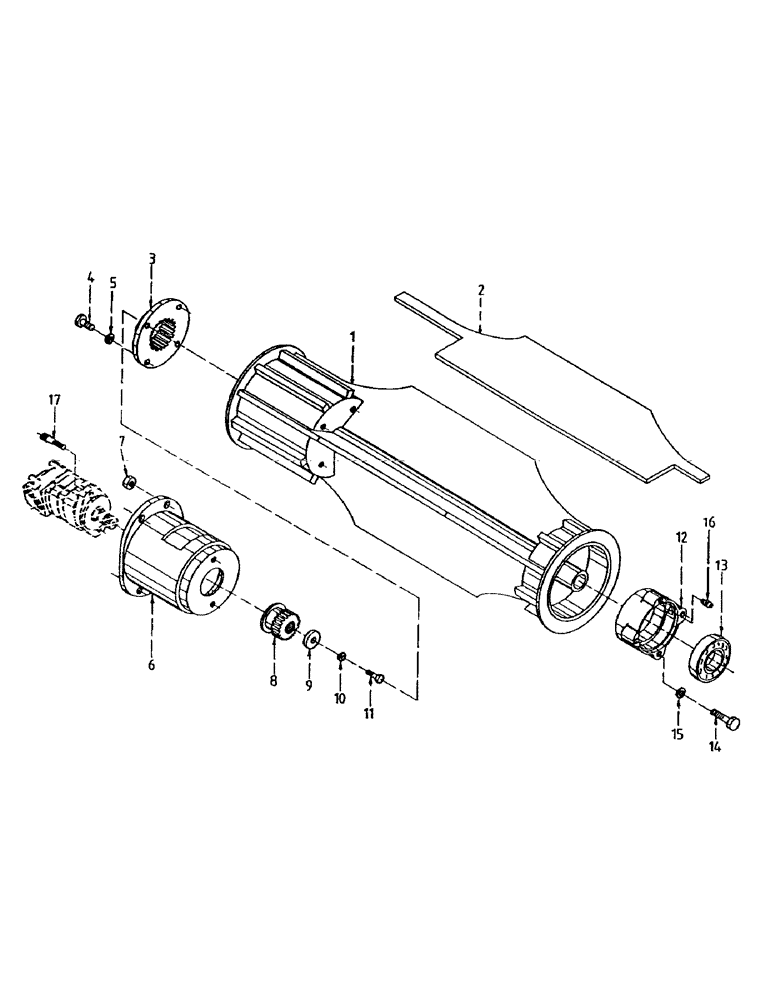

Запчасти Case IH 7000 (A02-40) - BUTTLIFT ROLLER, LEG BASECUTTER Mainframe & Functioning Components

1

87236283

ROLLER

1шт.

2

87236284

STEEL FLIGHT

FLIGHT

3шт.

3

86700800

ADAPTER

ADAPTOR

1шт.

4

FM112025

BOLT

4шт.

5

WB120000

WASHER

4шт.

6

87241425

HOUSING ASSY.

OVERALL LENGTH 200MM

1шт.

7

00605797

NUT

4шт.

8

86701200

GEAR

PINION

1шт.

9

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

1шт.

10

00605827

WASHER

1шт.

11

00601499

BOLT

1шт.

12

87213555

HOUSING, BEARING,87 mm ID x 62 mm

HOUSING

1шт.

13

00140493

BEARING

1шт.

14

00601511

BOLT

4шт.

15

00605829

WASHER

4шт.

16

00153751

LUBE NIPPLE

GREASE NIPPLE

1шт.

17

00604538

SCREW

2шт.
